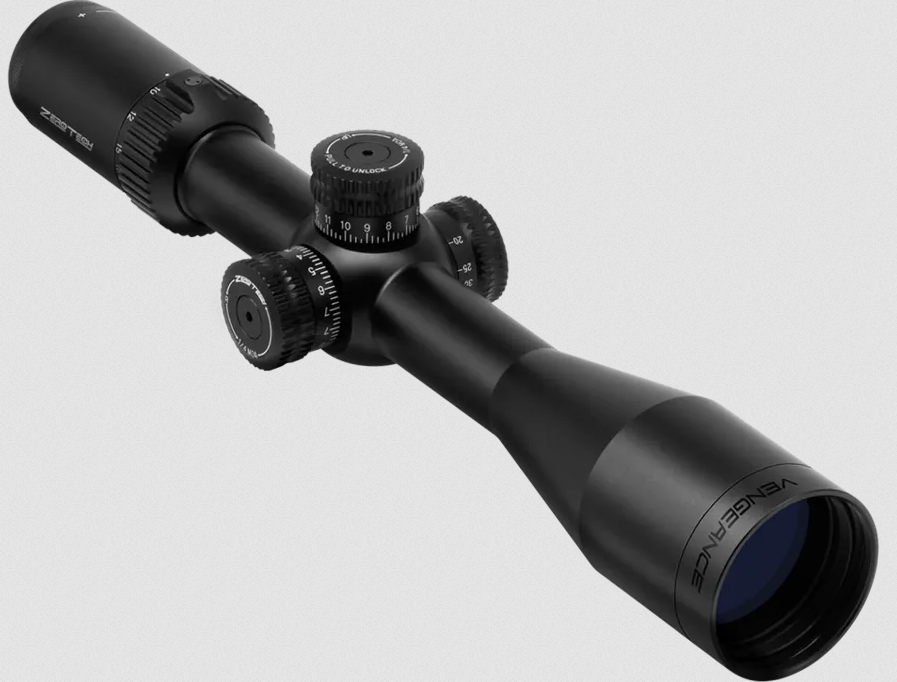

VENGEANCE 4-20x50 PHR II

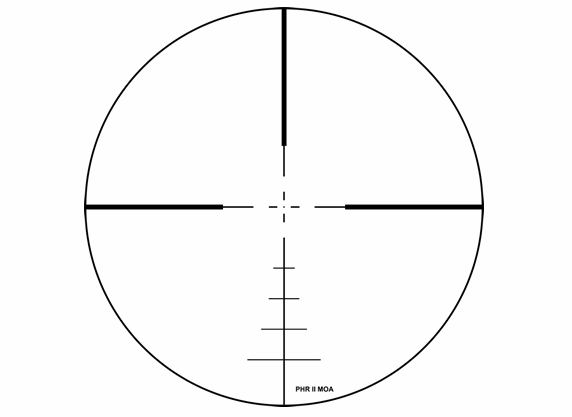

PHR II RETICLE
Description
Focal Plane | Second (SFP) |
Reticle calibrated magnification power (SFP only) | 20x |
Magnification Range | 4-20x |
Objective Lens Diameter | 50mm |
Maintube Diameter | 30mm |
Zero Stop | No |
Turret Index Value | 0.25MOA |
Internal Elevation Adjustment | 70MOA |
Internal Windage Adjustment | 70MOA |
Parallax Adjustment Range | 20 Meters – Infinity |
Exit Pupil Diameter | Low: 10.9mm; High: 2.6mm |
Eye Relief | 90mm |
Field Of View @100 Meters | Low: 6.8m; High: 1.7m |
Objective Outer Diameter | 57mm |
Ocular Outer Diameter | 43.9mm |
Weight | 800g |
Available Reticles | PHR II reticle PHR II Illuminated reticle R3 reticle R3 Illuminated reticle |
Illumination | No |
