THRIVE 3-12x44 MILDOT

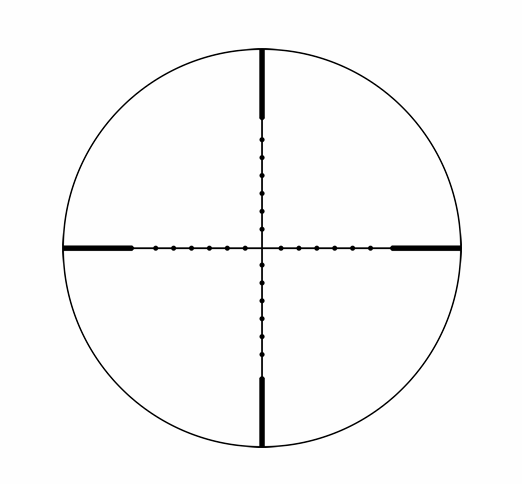

MILDOT RETICLE
Description
Focal Plane | Second (SFP) |
Reticle calibrated magnification power (SFP only) | N/A |
Magnification Range | 3-12x |
Objective Lens Diameter | 44mm |
Maintube Diameter | 30mm |
Zero Stop | No |
Turret Index Value | 0.25MOA |
Internal Elevation Adjustment | 60MOA |
Internal Windage Adjustment | 60MOA |
Parallax Adjustment Range | 10 Meters – Infinity |
Exit Pupil Diameter | Low: 14.4mm; High: 3.7mm |
Eye Relief | 85-91mm |
Field of View @100 Metres | Low: 12.2m; High: 3.0m |
Objective Outer Diameter | 51.0mm |
Ocular Outer Diameter | 43.5mm |
Weight | 607g |
Available Reticles | Mildot Reticle |
Illumination | No |
