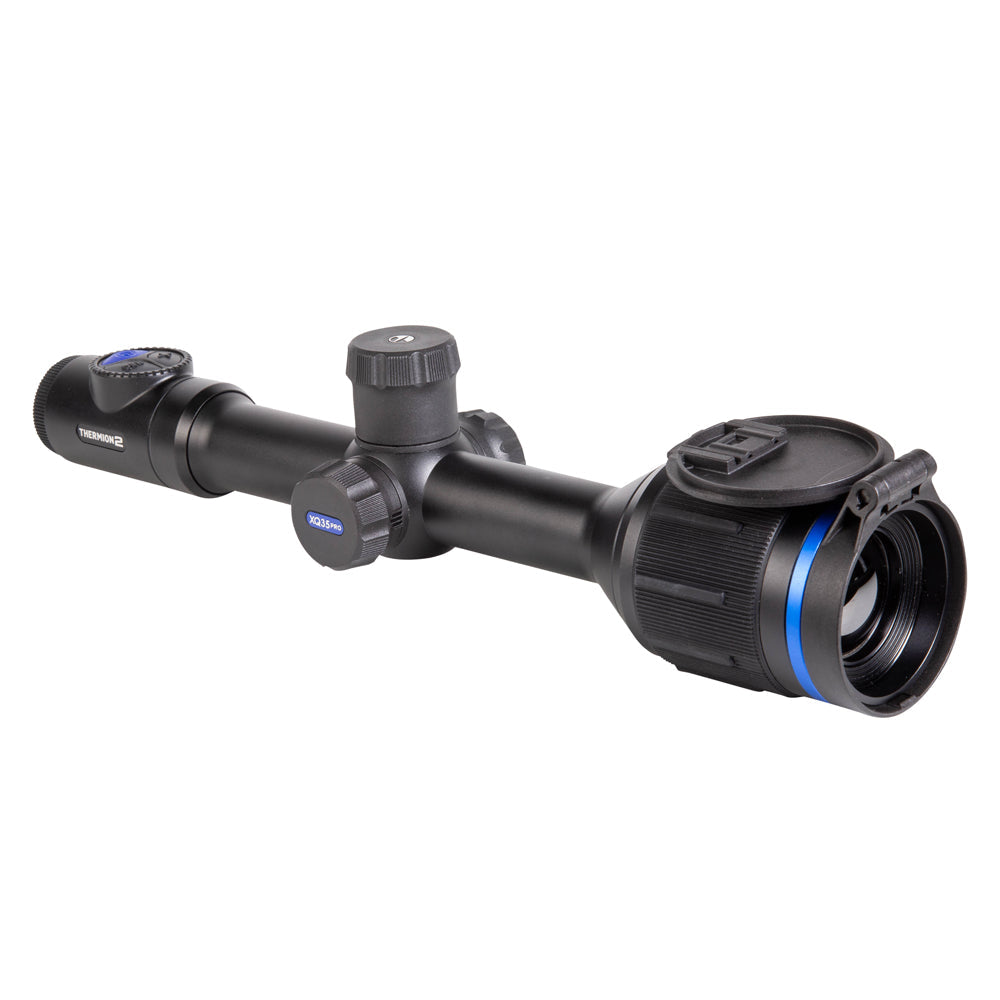

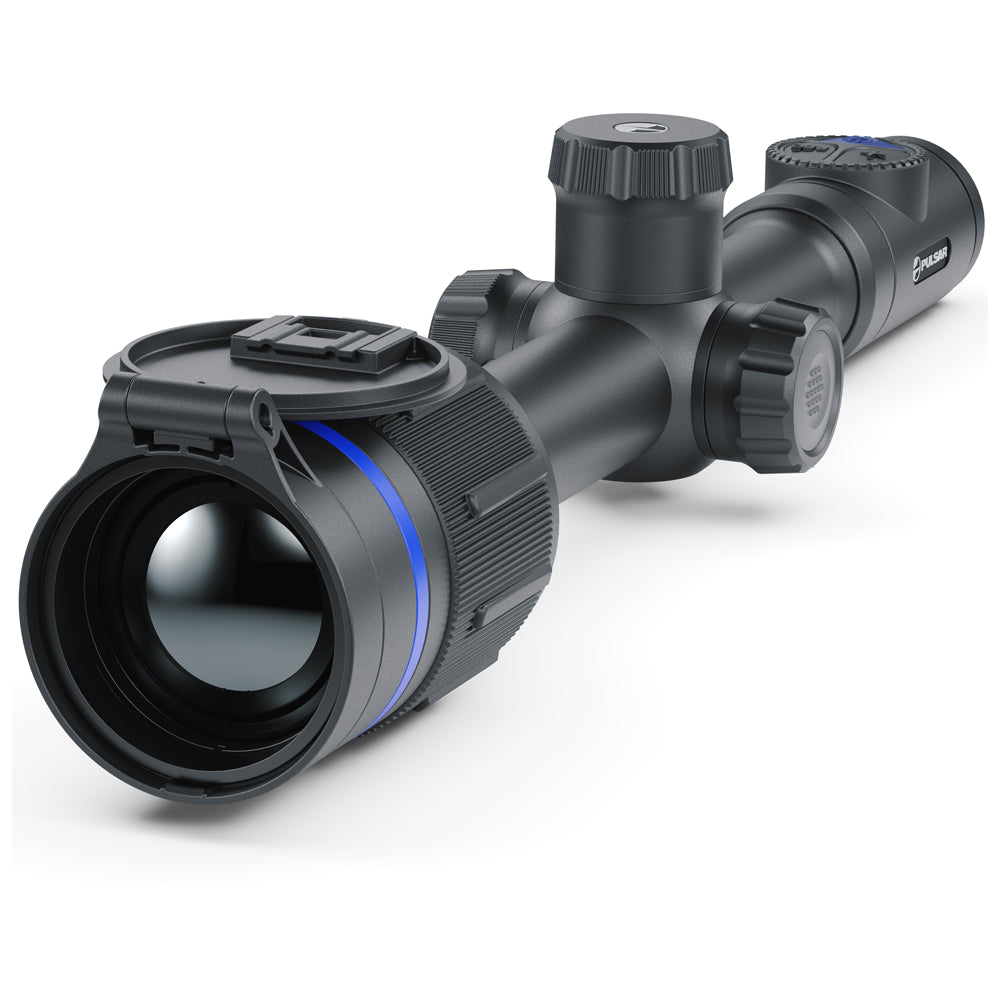

PULSAR THERMION 2 XQ35 PRO THERMAL RIFLE SCOPE

Model

XQ35 PRO

SKU

76541

Microbolometer

Type

uncooled

Resolution, pixels

384x288

Pixel Pitch, µm

17

NETD, mK

< 25

Frame refresh rate, Hz

50

Optical Specifications

Lens, mm

F35 F/1.0

Magnification, x

2.5-10

Eye relief, mm/inch

50/1.96

Field of view (H), °/m@100>

10.7/18.7

Diopter adjustment, D

-3/+5

Detection distance (Object of "deer" type), m/y

1350/1476

Aiming Reticle

Click value, mm@100 m – when magnifying, x

18.2 mm – 2.5x

9.1 mm – 5x

4.6 mm – 10x

Click range (H/V), mm@100 m (H/V)

3600/3600

Display

Type

AMOLED

Resolution, pixels

1024х768

Operating Features

Diameter of the riflescope body to assemble the mounting rings, mm

30

Power Supply, V

3–4.2

Battery type / Capacity / Rated Output Voltage

Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable)

or

Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)*

Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in)

External Power Supply

5 V, 9 V (USB Type-C Power Delivery)

Battery Packs (built-in APS5 and removable APS2) operating time at temp. = 22 °C, hrs**

10

Max. recoil power on rifled weapon, Joules

6000

Max. recoil power on smoothbore weapon, caliber

12

Degree of protection IP code (IEC60529)

IPX7

Operating temperature, °С / °F

-25 – +50 / -13 – +122

Dimensions with an eyecup, mm/inch

399х78х80 / 15.7x3.07x3.15

Weight (without removable battery), kg/oz

0.88 / 31.04

Video Recorder

Photo / video resolution, pixels

1024x768

Video / photo format

.mp4 / .jpg

Built-in memory

16 GB

Wi-Fi Channel***

Frequency

2.4/5 GHz

Standard

IEEE 802.11 b/g/n/ac
