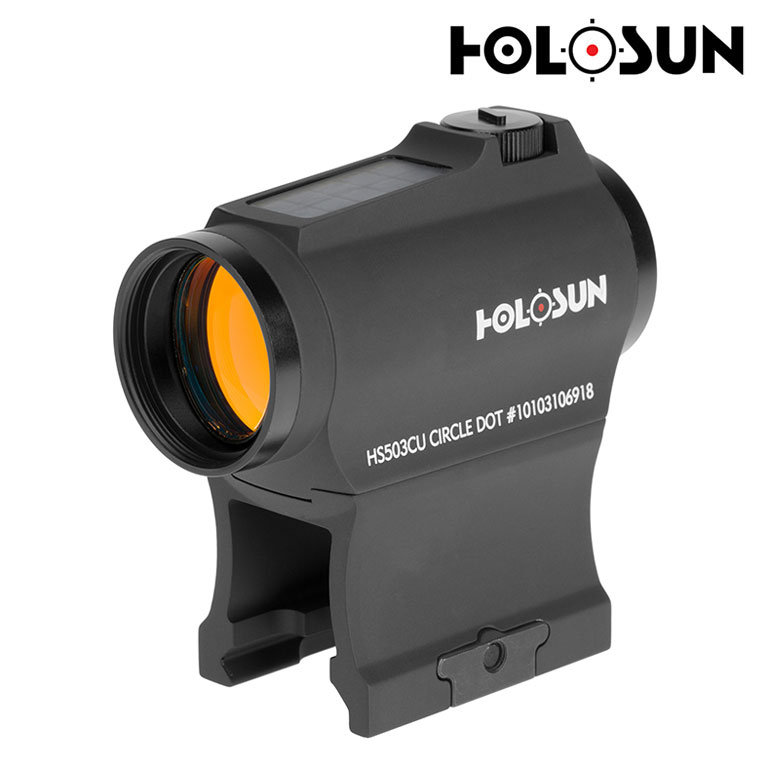

HS503CU; Compact Red Dot Sight; 2 MOA Dot or 65 MOA Circle Dot; Solar/Battery
The HS503CU is a 20mm micro sight designed for rifle and carbine applications. HS503CU features Holosun’s Solar Failsafe technology and our Multi-Reticle System (MRS) which includes a 2MOA dot and a 65 MOA Circle. Holosun’s Red Super LED allows for up to 50k hour battery life with 10 daylight and 2 night vision compatible reticle intensity settings.
The HS503CU housing is made from 6061 aluminum and includes both a lower 1/3 co-witness mount (1.63”) and a low mount (.75”) for low-comb height rifle applications. Additional features include Shake Awake technology, rubber lens covers, and a side battery for the 2032 battery. HS503CU is a versatile sight for users of all levels.
Key Features:
- Solar Failsafe™ & Shake Awake™
- Multiple Reticle System (MRS)
- MRS:2 MOA Dot; 2 MOA Dot & 65 MOA Circle
- Super LED
- Multilayer Reflective Glass
- Up to 50,000 Hours Battery Life (Setting 6)
- 12 Brightness Setting: 10 DL & 2 NV Compatible
- Convenient Tray Battery Compartment
- Parallax-free & Unlimited Eye Relief
Comes with:
- Lower 1/3 Cowitness Mount
- Low Profile Mount
- T10 L Key
- Rubber Cover
- User Manual
- CR2032 Battery
- Lens Cloth
OPTICAL DATA
Reticle 2 MOA Dot & 65 MOA Circle
Light Wavelength 650nm
Reticle Color Red
Parallax Free Yes
Unlim. Eye Relief Yes
Magnification 1x
Multi-Coatings Yes
ELECTRONIC DATA
Power Source Solar & Battery
Battery Type CR2032
Battery Life (Hrs) 50000
Brightness Setting 10 DL&2 NV

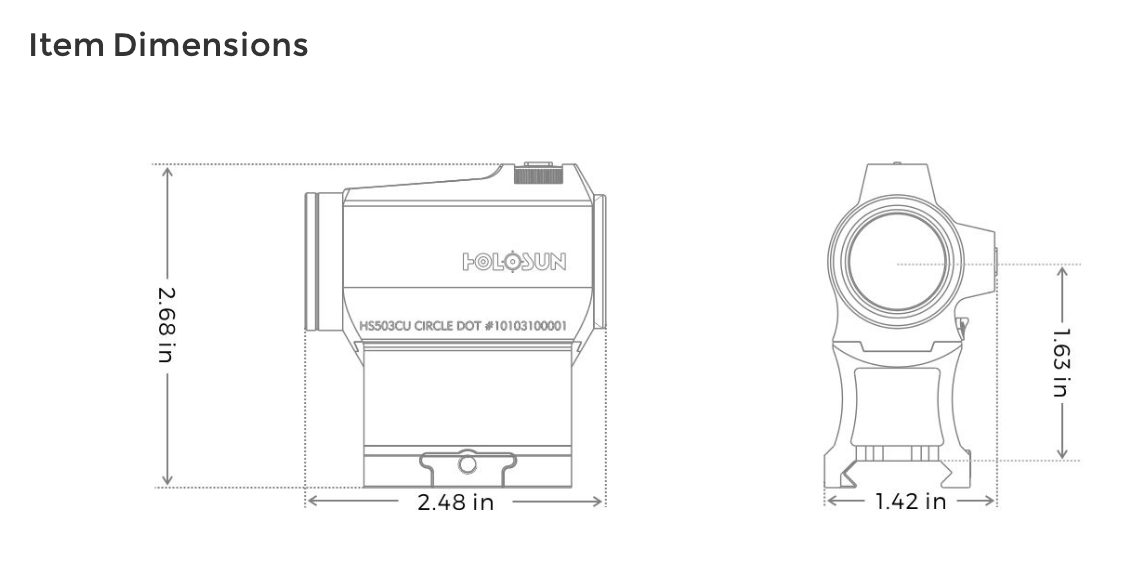

PHYSICAL DATA
Window Size 20mm Diameter
Dimension (in) 2.6×1.43×1.6
Weight (oz) 3
MECHANICAL DATA
Housing Material 6061 T6 Aluminum
Surface Finish MAO
Adjustment per Click 0.5 MOA
W&E Travel Range ±50 MOA
ENVIRONMENT DATA
Storage Temperature -40℃~70℃
Working Temperature -30℃~60℃
Submersion IP67
Vibration 1000G
