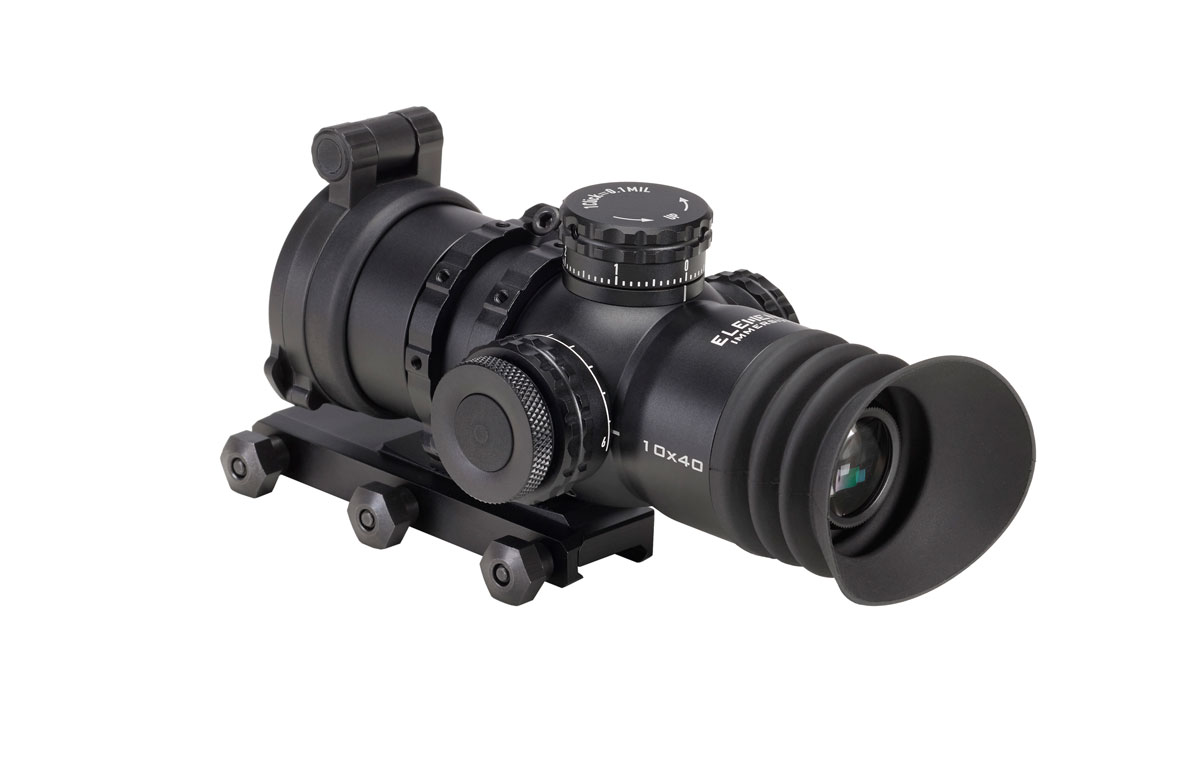

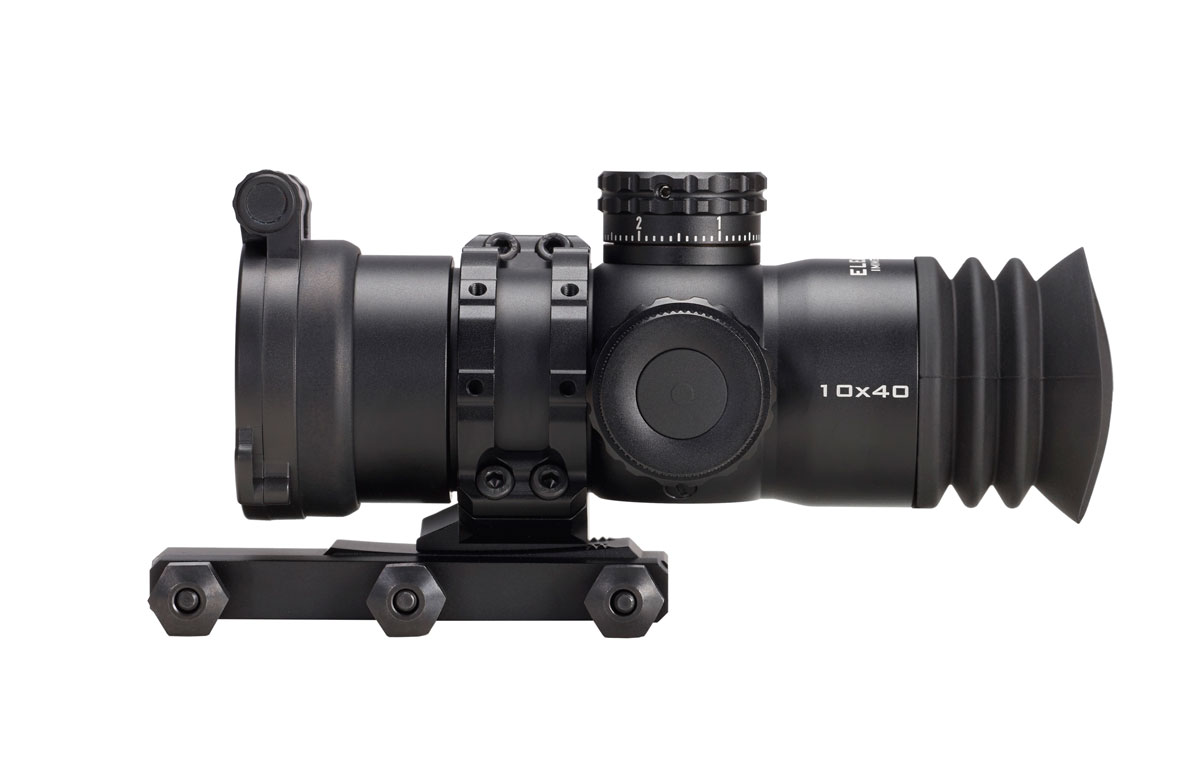

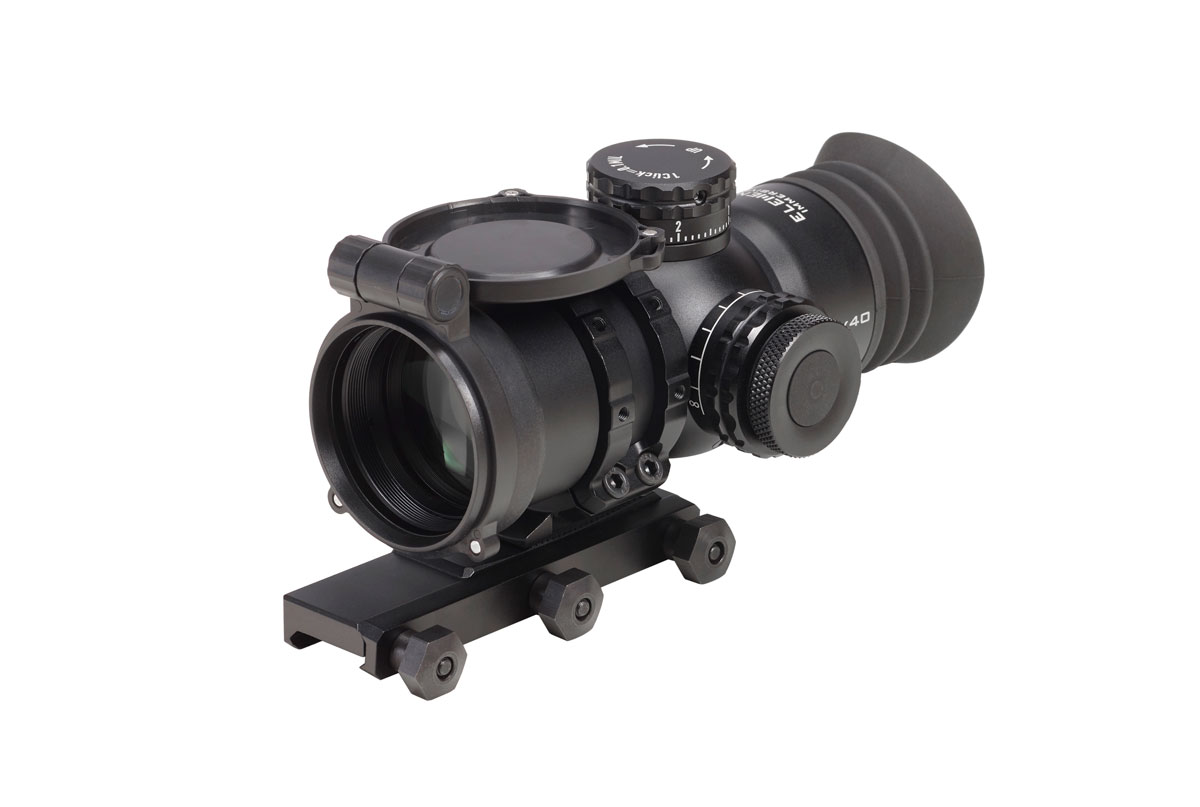

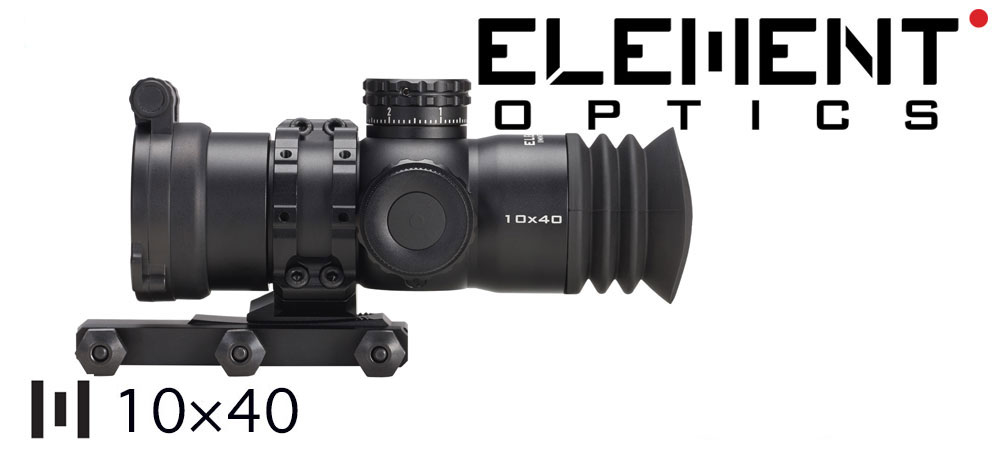

Element Optics Immersive Series MOA APR-1C - 10x40
FOR ZERO RECOILING RIFLES ONLY
Traditional riflescopes have their place in the optics world, but new technology is allowing us to push the envelope of what is possible. The Immersive Series brings you range of ultra-compact Prismatic Riflescopes with many unique properties, including market-leading field of view, drawing you in to your surroundings for a better perspective.
Unlike conventional scopes, which present the image from the eyepiece as floating distantly in front of you, the image from an Immersive Series scope allows for vastly improved peripheral awareness, giving the impression that you are immersed in the scene – and with the optical clarity of ED Glass, there are no compromises.
The 10×40 and 14×50 models feature a short eye relief, allowing for an incredible field of view of up to 4x a traditional riflescope at the same magnification.
*For zero recoiling rifles only.
- Compact, Lightweight design
- Tilt-Adjustable Unimount with 3x Base Lengths Included

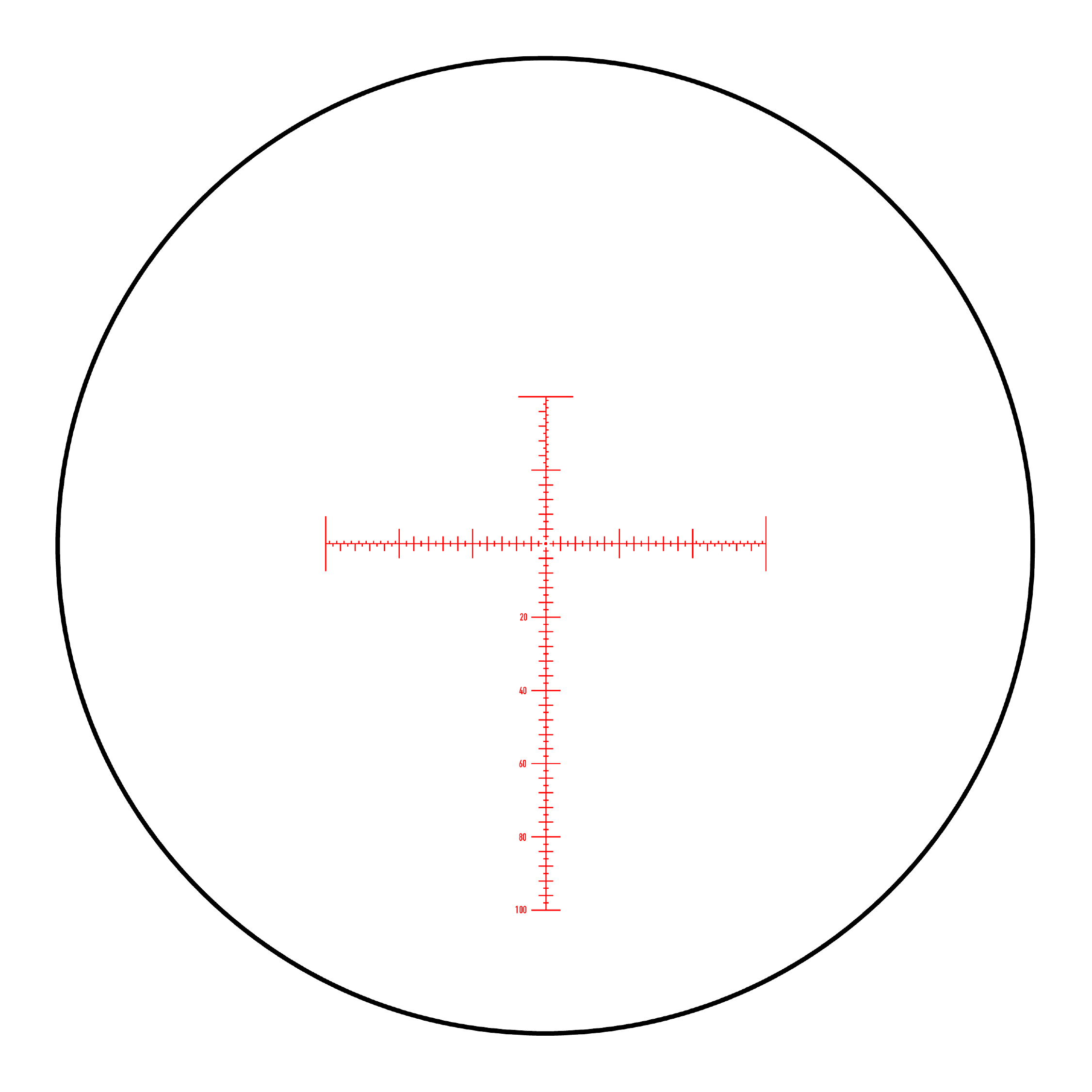

- Illuminated Reticle (Push-Button System)
- Side Parallax: 6yds-Infinity
- ED Glass for reduced chromatic aberration and improved sharpness

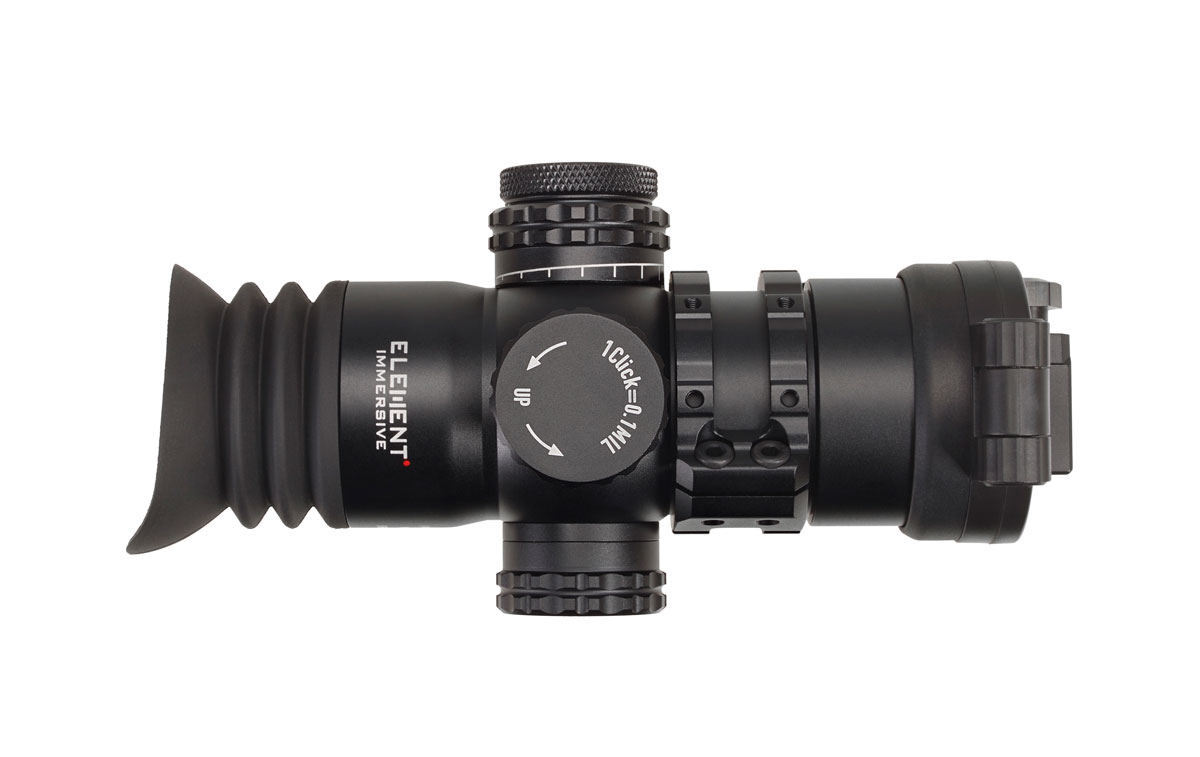

- Exposed Elevation turret, Capped Windage Turret (both resettable)
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Magnetic Flip Cap & Rubber Eyecup Included
MAGNIFICATION 10x TUBE DIAMETER OBJECTIVE LENS DIAMETER 40mm EXIT PUPIL EYE RELIEF 0.7” (18mm) FIELD OF VIEW @100yds: 34ft |
@100m: 11.4mCLICK VALUE 1/4 MOA (15 MOA / REV) 1/10 MRAD (6 MRAD / REV)
ELEVATION ADJUSTMENT RANGE 83 MOA 28 MRAD WINDAGE ADJUSTMENT RANGE 83 MOA 28 MRAD MINIMUM PARALLAX 6 YDS 6 METERS LENGTH 5.31” 135mm WEIGHT (W/MOUNT) 17.1oz 485g
