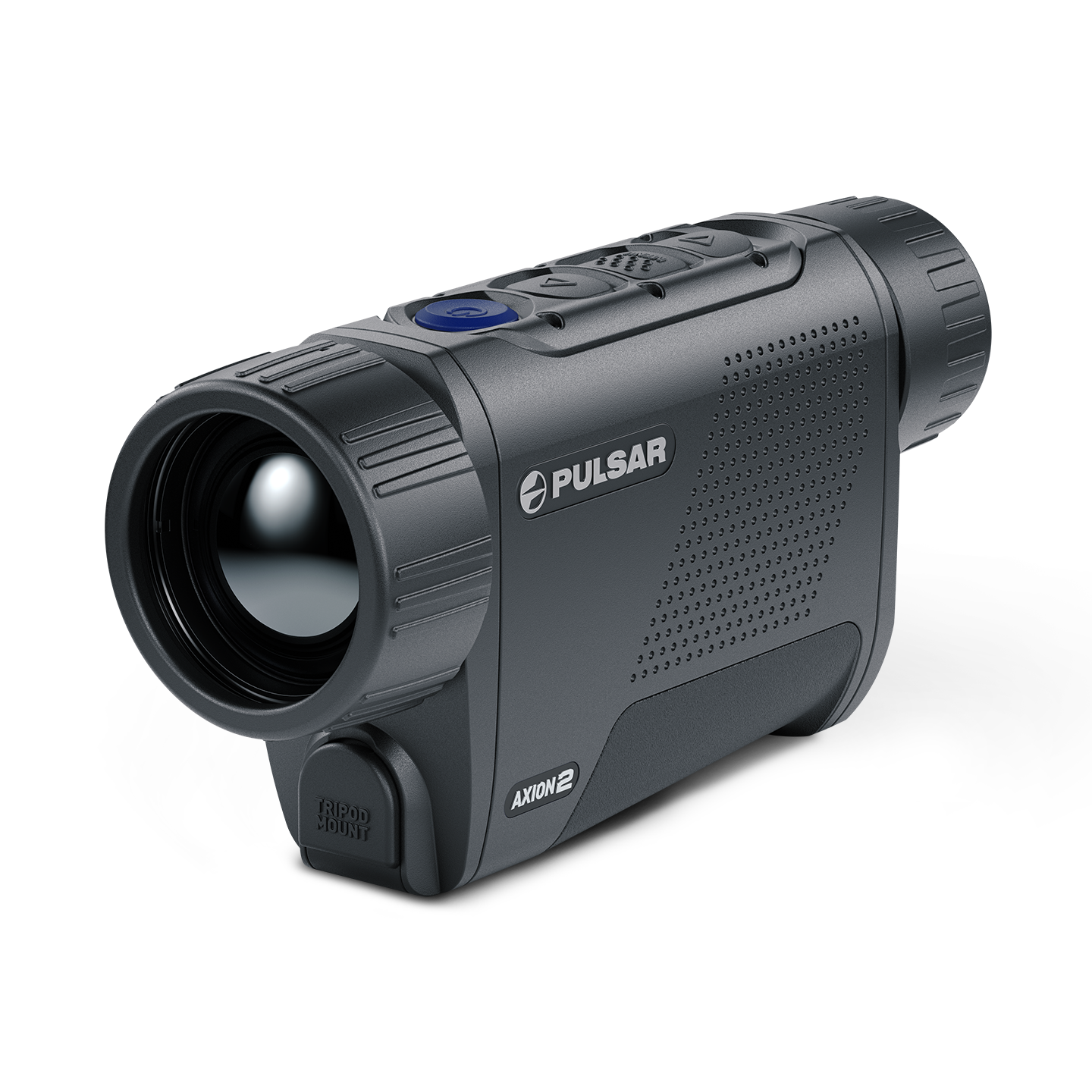

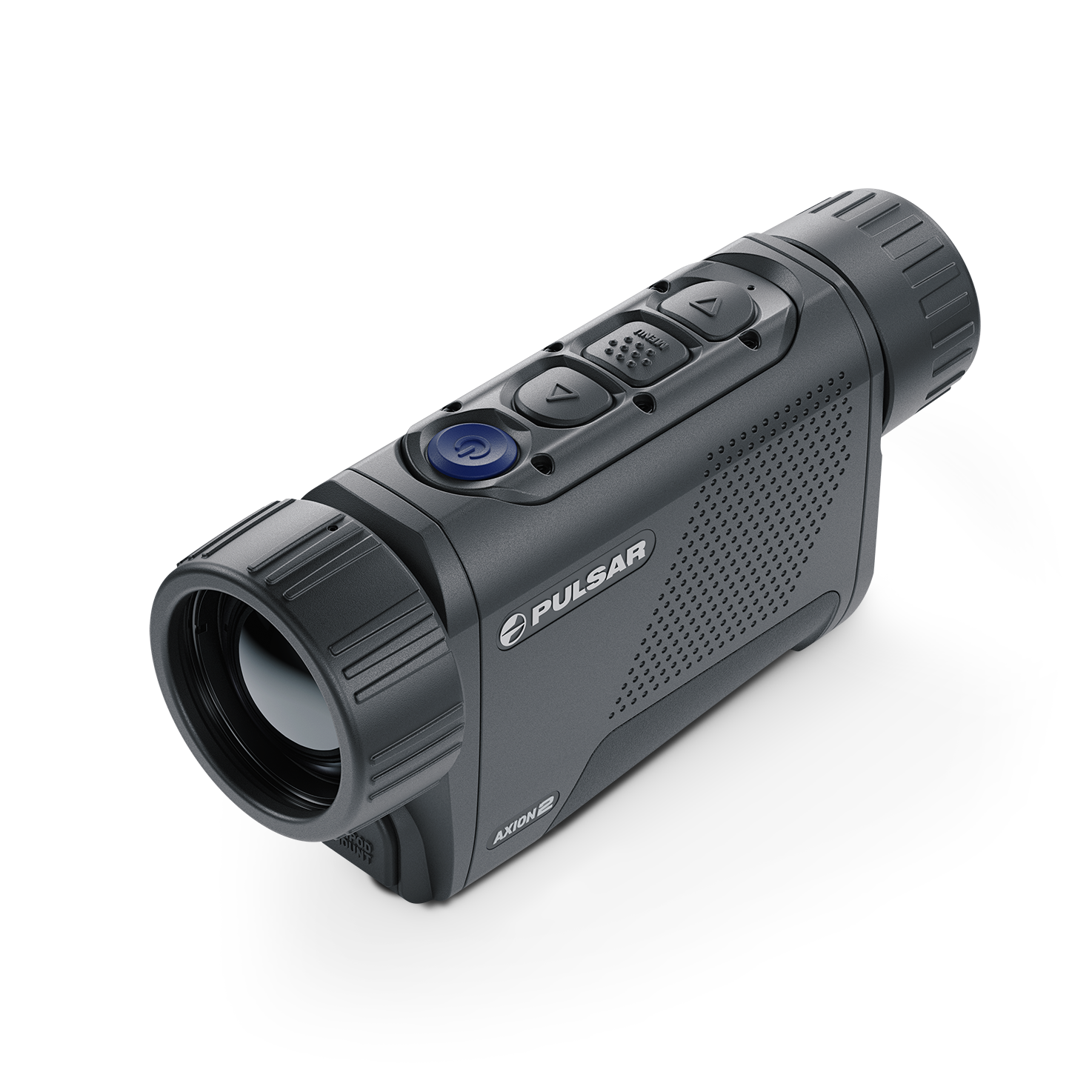

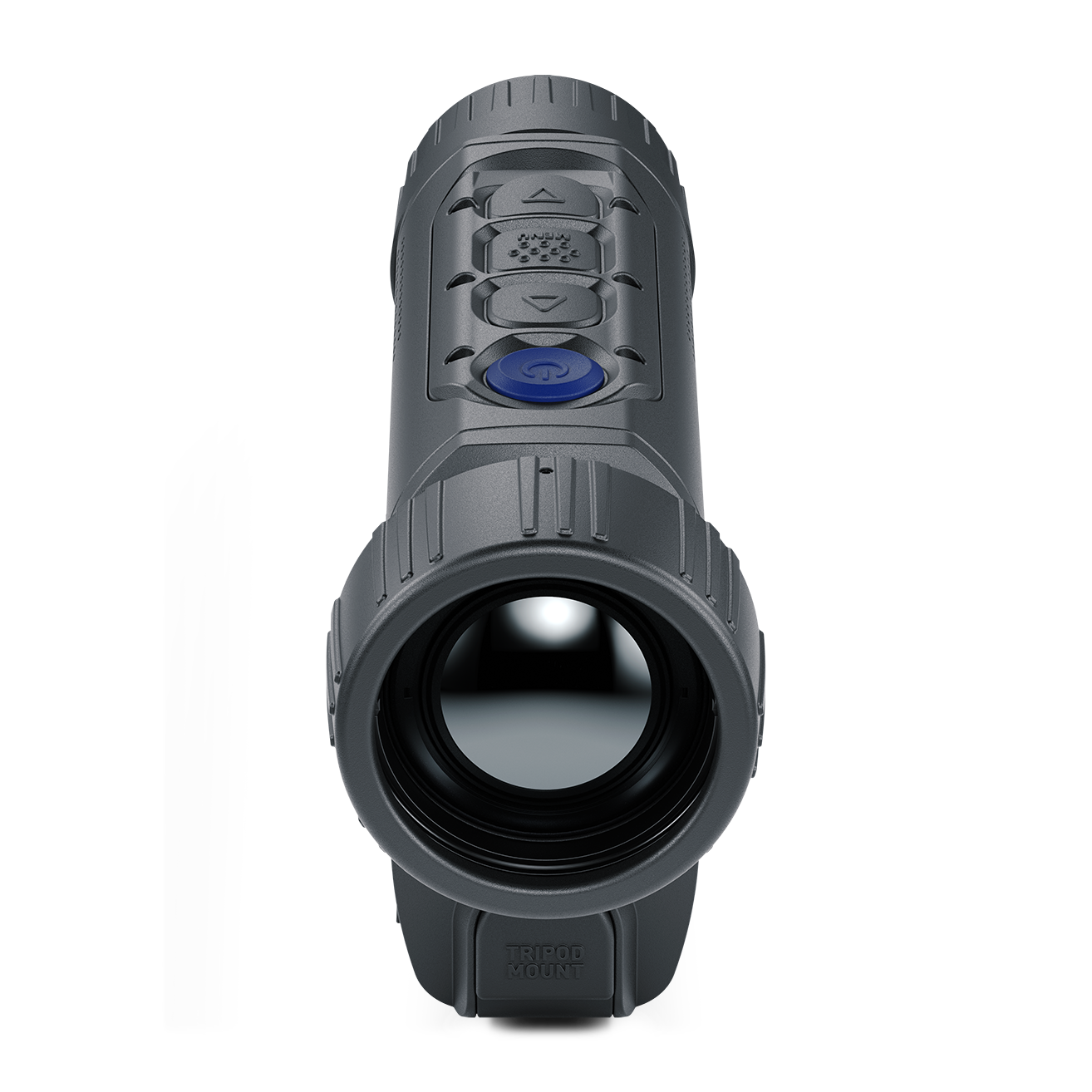

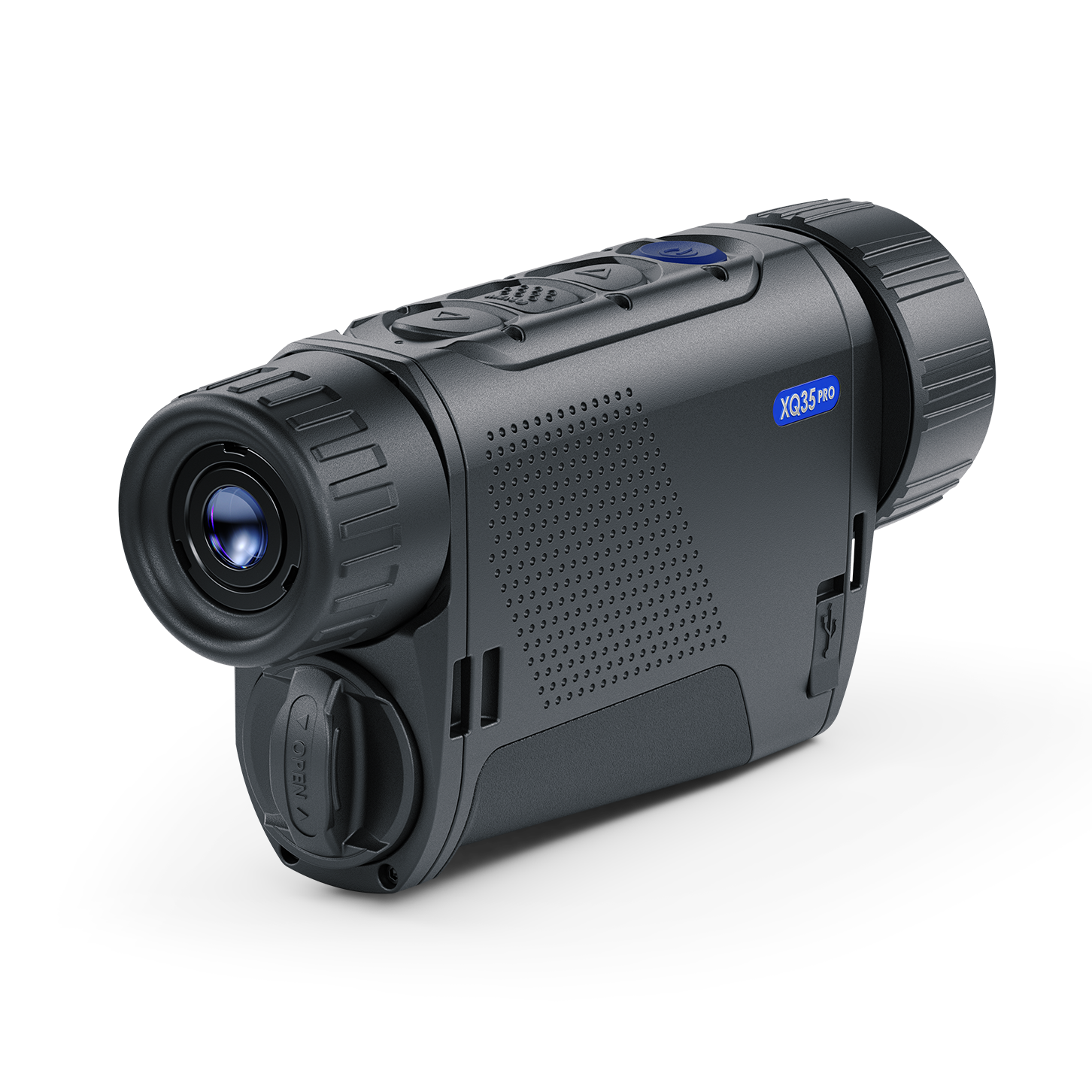

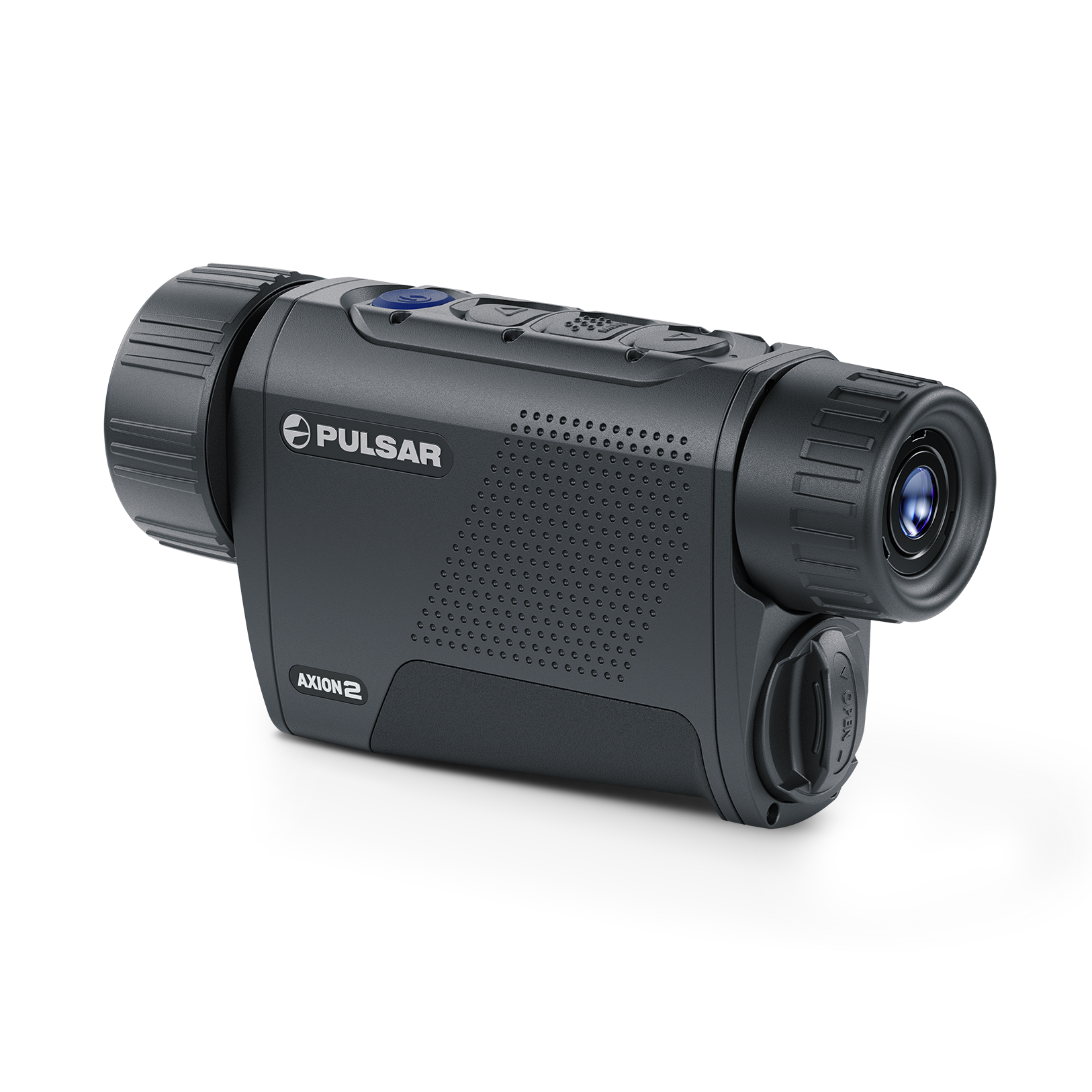

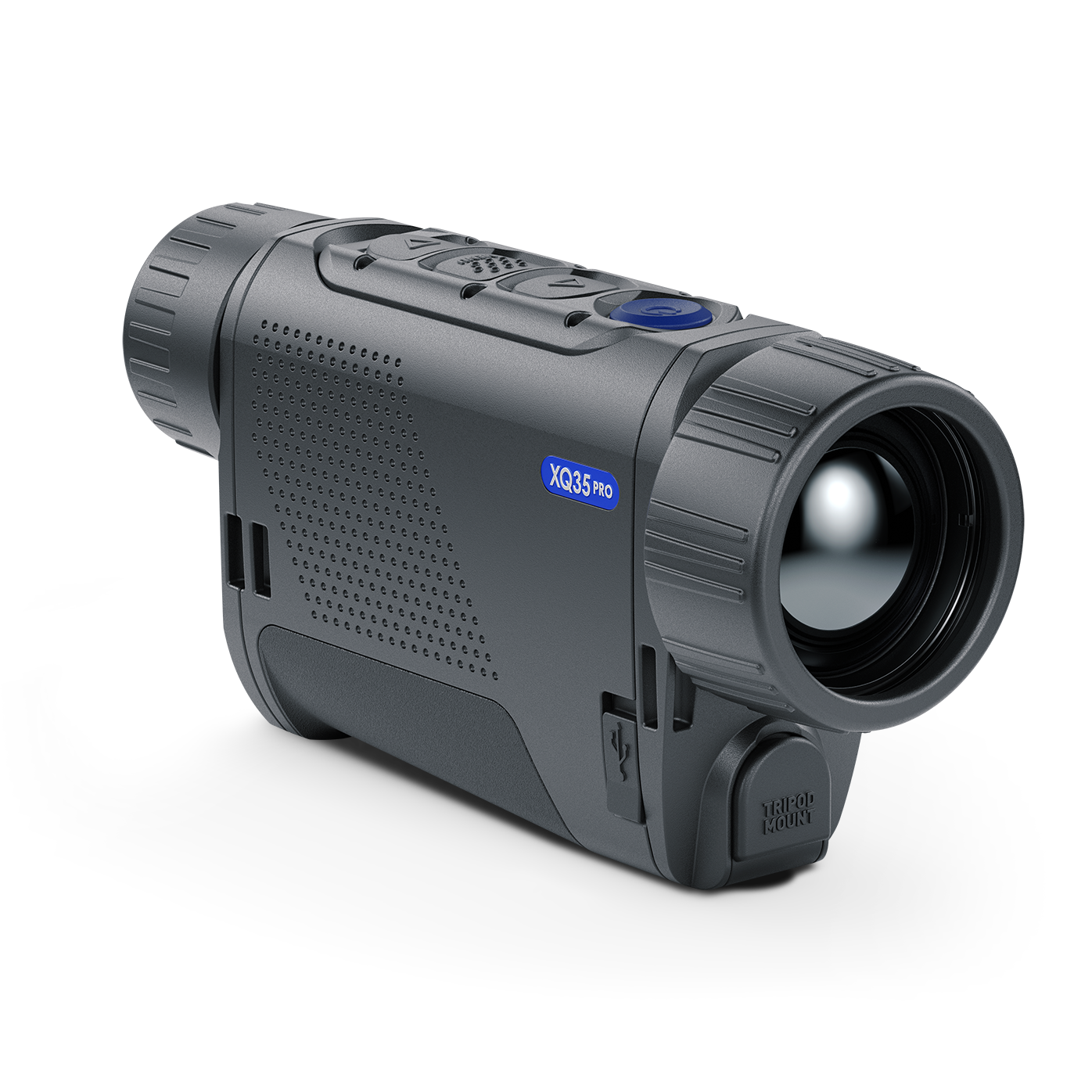

PULSAR AXION 2 XQ35 PRO THERMAL MONOCULAR
Please call to back-order
|
Model |
XQ35 Pro |
|
|
SKU |
77501 |
|
|
Microbolometer |
||
|
Type |
uncooled |
|
|
Resolution, Pixels |
384x288 |
|
|
Pixel Pitch, µm |
17 |
|
| NETD, mK |
< 25 |
|
|
Frame Rate, Hz |
50 |
|
|
Optical Characteristics |
||
|
Optical Magnification, x |
2 |
|
|
Smooth Digital Zoom, x |
2-8 |
|
|
Digital Zoom, x |
x1, x2, x4 |
|
|
Lens Focus, mm |
35 |
|
|
Relative Aperture, D/f' |
1.0 |
|
|
Minimum Focus Distance, m/y |
5 / 5.47 |
|
|
Exit Pupil Diameter, mm/inch |
4 / 0.16 |
|
|
Angular Field of View (Horizontal x Vertical), degree |
10.7х8 |
|
|
Linear Field of View, m at 100 m |
18.2 |
|
|
Eyepiece Focus Range, Dioptre |
+4 / -5 |
|
|
Detection Distance for Deer-Sized Objects, m/y |
1300 / 1422 |
|
|
Display |
||
|
Type |
AMOLED |
|
|
Resolution, Pixels |
640x400 |
|
|
Operational Characteristics |
||
|
Power Supply, V |
3 - 4.2 |
|
|
Battery Type/Capacity/Nominal Output Voltage |
APS 5 Li-ion Battery Pack / 4900 mAh / DC 3.7 V |
|
|
External Power Supply |
5 V, 9 V (USB Type-C) |
|
|
Battery Run Time at t=22°C, hours* |
11 |
|
|
Degree of Protection, IP Code (IEC60529) |
IPX7 |
|
|
Operating Temperature Range, °C / °F |
-25 … +40 / -13 – +104 |
|
|
Dimensions, mm/inch |
152x50x74 / 5.98x1.97x2.91 |
|
|
Weight (with battery), kg/oz |
0.38 / 13.4 |
|
|
Video Recorder |
||
|
Photo/Video Resolution, Pixels |
528x400 |
|
|
Video/Photo Format |
.mp4 / .jpg |
|
|
Built-in Memory |
16 GB |
|
|
Wi-Fi Channel** |
||
|
Frequency |
2.4/5 GHz |
|
|
Standard |
IEEE 802.11 b/g/n/ac |
|
