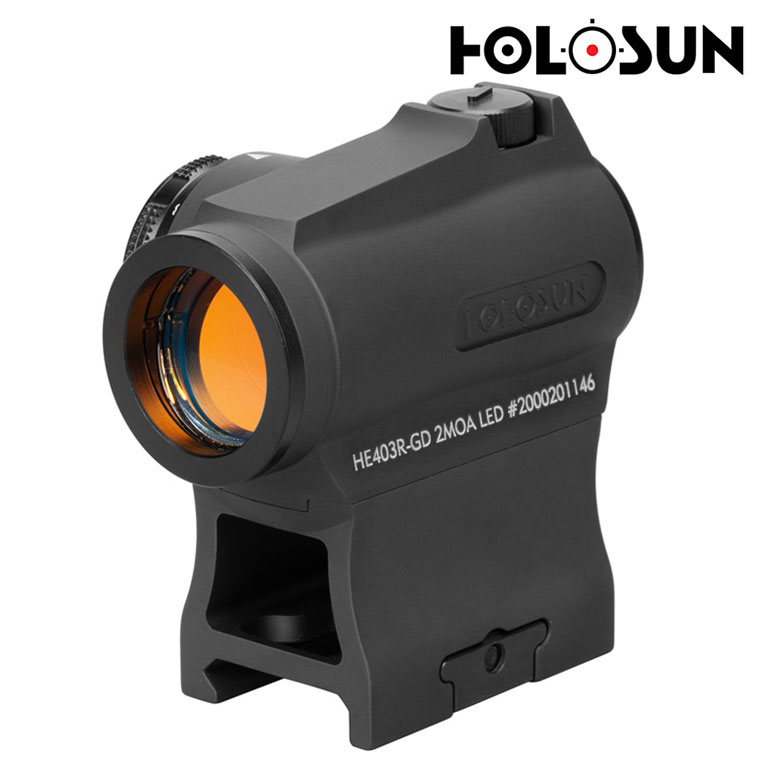

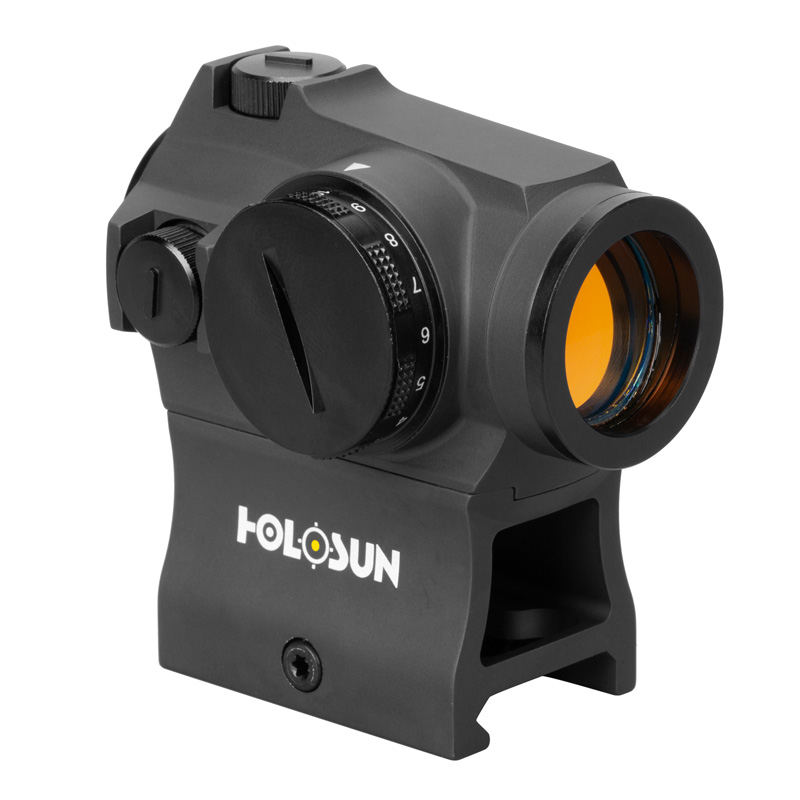

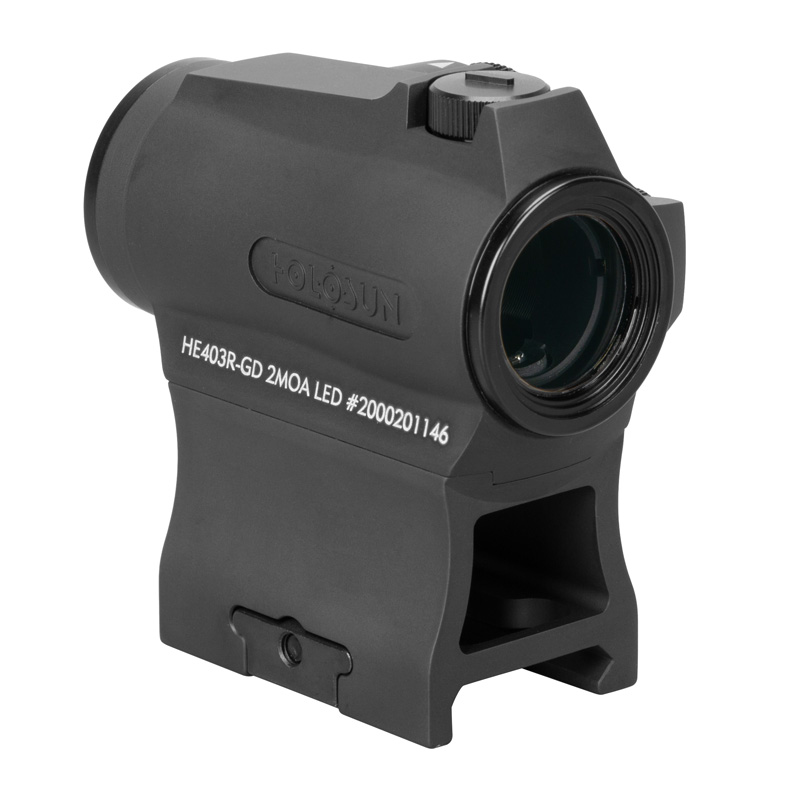

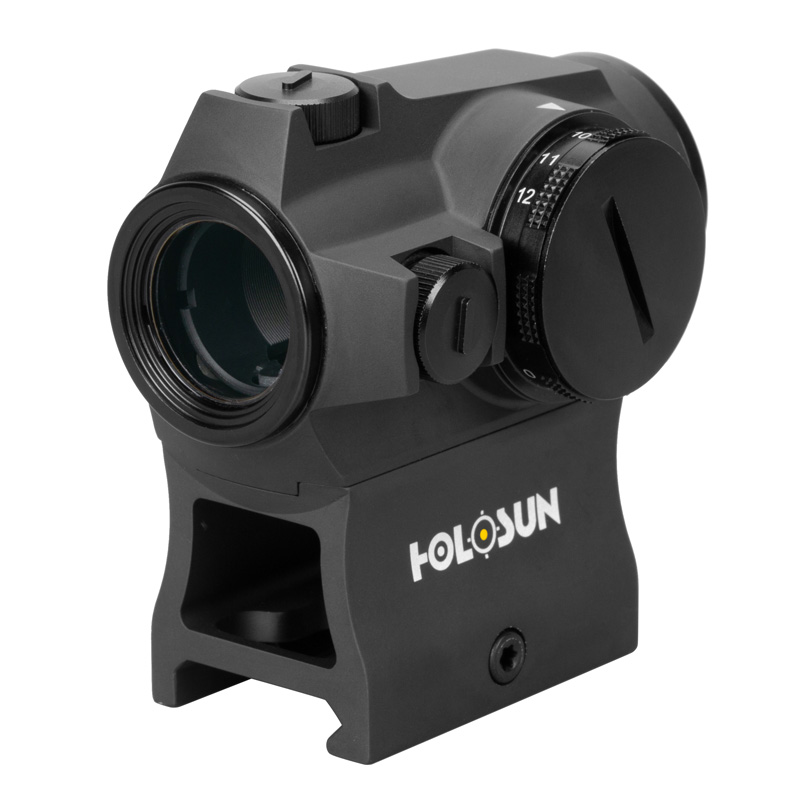

HE403C-GD Compact Red Dot Sight **GOLD**
The HE403R-GD (Gold Dot) is a 20mm micro sight designed for rifle and carbine applications. HE403R-GD features a Rotary switch to select reticle intensity, Holosun’s Gold Super LED with 50k hour battery life, and a 2MOA dot with 10 daylight and 2 night vision compatible reticle intensity settings.
The HE403R-GD housing is made from durable cast aluminum and includes both a lower 1/3 co-witness mount (1.63”) and a low mount (.75”) for low-comb height rifle applications. Additional features include rubber lens covers, and a battery compartment integrated into the Rotary switch for the 2032 battery. HE403R-GD is a versatile sight for users of all levels.
Key Features:
- Super LED
- 2 MOA Gold Dot Reticle
- Multilayer Reflective Glass
- Up to 100,000 Hours Battery Life (Setting 6)
- 12 Brightness Setting: 10 DL & 2 NV Compatible
- Rotary Switch with Integrated Battery Compartment
- Parallax-free & Unlimited Eye Relief
Comes with:
- Lower 1/3 Cowitness Mount
- Low Profile Mount
- T10 L Key
- Rubber Cover
- User Manual
- CR2032 Battery
- Lens Cloth
OPTICAL DATA
Reticle 2 MOA Dot
Light Wavelength 590nm
Reticle Color Gold
Parallax Free Yes
Unlim. Eye Relief Yes
Magnification 1x
Multi-Coatings Yes
ELECTRONIC DATA
Power Source Solar & Battery
Battery Type CR2032
Battery Life (Hrs) 50000
Brightness Setting 10 DL&2 NV

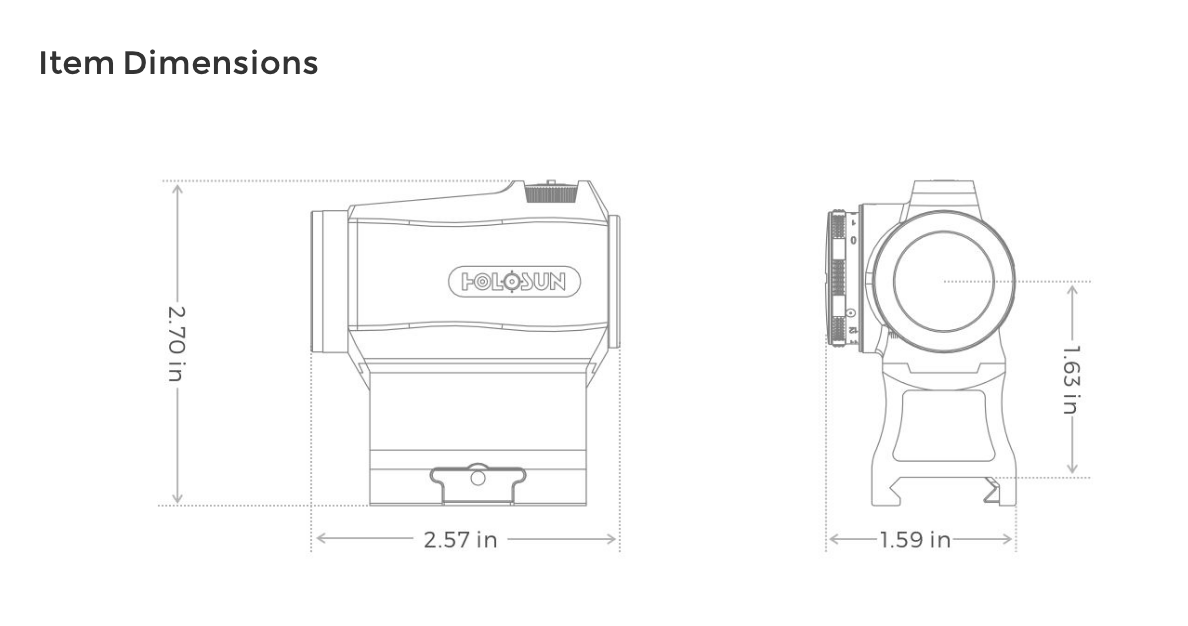

PHYSICAL DATA
Window Size 20mm Diameter
Dimension (in) 2.75×1.43×1.6
Weight (oz) 3.53
MECHANICAL DATA
Housing Material Durable Aluminum
Surface Finish MAO
Adjustment per Click 0.5 MOA
W&E Travel Range ±50 MOA
ENVIRONMENT DATA
Storage Temperature -40℃~70℃
Working Temperature -30℃~60℃
Submersion IP67
Vibration 1000G
