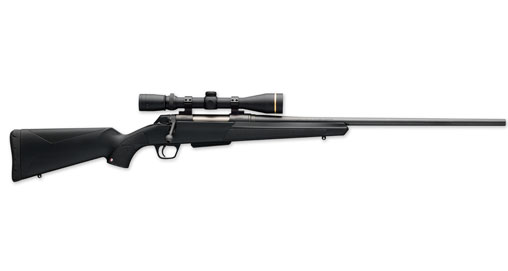

Winchester XPR Synthetic
Winchester XPR
Rain, snow, sleet or mud — you name it and the XPR can handle it. It’s a rugged, no nonsense game-getter that will put meat in your freezer for many years to come.
The M.O.A. Trigger System minimizes Take-Up, Creep and Overtravel for improved accuracy and a superior overall shooting XPRience.
HARDENED STEEL COMPONENTS
The trigger housing and all internal components in the XPR™ rifle’s M.O.A trigger are constructed of polished and hardened carbon steel, with a blued finish for added durability and corrosion resistance.
ZERO TAKE-UP
Take-up is the distance the trigger piece travels prior to the sear moving toward release and the shooter feeling resistance. The XPR™ rifle’s M.O.A. Trigger System uses a spring to eliminate take-up by keeping the trigger piece in constant contact with the actuator. Unlike many competitors’ designs, the unique geometry of the M.O.A. pre-loads the entire trigger system to bias out normal manufacturing tolerances.
ZERO CREEP
Creep is the perceptible movement of the trigger prior to the release of the firing pin and has a negative influence on accuracy, causing inconsistency and uncertainty during the pull of the trigger. Creep contributes to jerking the trigger, thus adding to movement of the gun during firing. The 2:1 mechanical advantage created by this unique design geometry has virtually eliminated creep in the XPR™ rifle’s M.O.A. Trigger.
ZERO OVERTRAVEL
Overtravel is the rearward movement of the trigger after the firing pin has been released. It can actually jar the gun away from its intended point of aim and is very distracting to the shooter. The XPR™ rifle’s adjustable M.O.A. Trigger System is set at the factory to break at a crisp 3 1/2 pounds with no perceptible overtravel. When the sear drops, the trigger stops. Where you aim is where you shoot.
TWO-POSITION SAFETY
Every XPR™ has a TWO-POSITION SAFETY that’s convenient to operate with the thumb of your firing hand. The safety’s design fully retracts the trigger away from the actuator. Located just in front of the safety button, the BOLT RELEASE BUTTON allows the action to cycle unfired cartridges while the safety is on. The COCKING INDICATOR on the bolt shroud gives you both a tactile and visual reference of the rifle’s cocked/ uncocked condition.
XPR™ BOLT
The robust XPR™ BOLT is crafted from chromoly steel barstock and is through-hardened during heat-treatment. The bolt design offers three front locking lugs and a short 60-degree lift for improved scope clearance when cycling. The full-diameter bolt body creates a more rigid component. It is then coated with NICKEL TEFLON® for smoother operation and added corrosion resistance. The one-piece bolt handle is sculpted to give a more positive grip. The bolt can be fieldstripped in just seconds without special tools for cleaning and lubrication.
TRIGGER GUARD and MAGAZINE FRAME
The one-piece TRIGGER GUARD and MAGAZINE FRAME design offers a generous guard opening for use with gloves. The DETACHABLE BOX MAGAZINE is constructed of a light yet rugged polymer and securely latches at both the front and rear. A single stack design that feeds cartridges in a straight line to the chamber; the magazine’s capacity is three rounds in both magnum and standard calibers. Additional magazines can be easily carried in a pocket or pack.
RECEIVER
The XPR™ RECEIVER starts out as a hefty piece of chromoly steel barstock that’s precision machined and through-hardened during heat-treating to create a strong, stiff and solid receiver capable of delivering pinpoint accuracy. The ejection port is generously sized for more reliable ejection and easier access when loading single cartridges by hand. Two hefty socket head action screws allow the receiver to be precisely torqued in the stock for maximum accuracy. The receiver is drilled and tapped for beefy 8-40 screws, creating a more secure mounting for today’s larger, high-magnification scopes.
CHROMOLY STEEL BARREL
The CHROMOLY STEEL BARREL on the XPR™ is precisely button-rifled to create outstanding accuracy with a wide variety of bullet weights and types. Every barrel is thermally stress relieved to ensure straight and true accuracy, even during long strings of fire. The BARREL NUT keeps the entire barrel/receiver assembly precisely aligned and allows for more accurate headspace control during manufacture. This means there is nothing to shift out of position and degrade accuracy. The entire barrel is FREE-FLOATING to eliminate any accuracy robbing pressure points.
RECESSED CROWN
Every XPR™ features a RECESSED TARGET-STYLE CROWN at the muzzle to protect the rifling from nicks and dings. Each bullet exits the barrel uniformly for the ultimate in downrange accuracy
BARREL SET
A critical feature of any high-powered rifle is how the action and barrel are set in the stock. The XPR rifle’s receiver nestles onto FLAT PROFILE INTERFACE PADS and into a cross-mounted recoil lug to resist flex and twist when firing. The XPR will hold its zero under the most adverse conditions.
ADVANCED POLYMER STOCK
The XPR™ has an ADVANCED POLYMER STOCK that offers a matte finish with textured panels on the fore-end and pistol grip to improve grip in cold, wet weather. The fore-end has rounded edges plus a slightly flattened bottom profile for comfortable shooting from any position. This flattened profile also optimizes stability when firing off sandbags or a rest.
INFLEX RECOIL PAD
The INFLEX TECHNOLOGY RECOIL PAD has specially-shaped internal rib structures that redirect the recoil impulse, moving the comb down and away from your face. The ideally contoured contact area on the XPR™ offers optimal protection against felt recoil, even when shooting today’s magnum loads.
