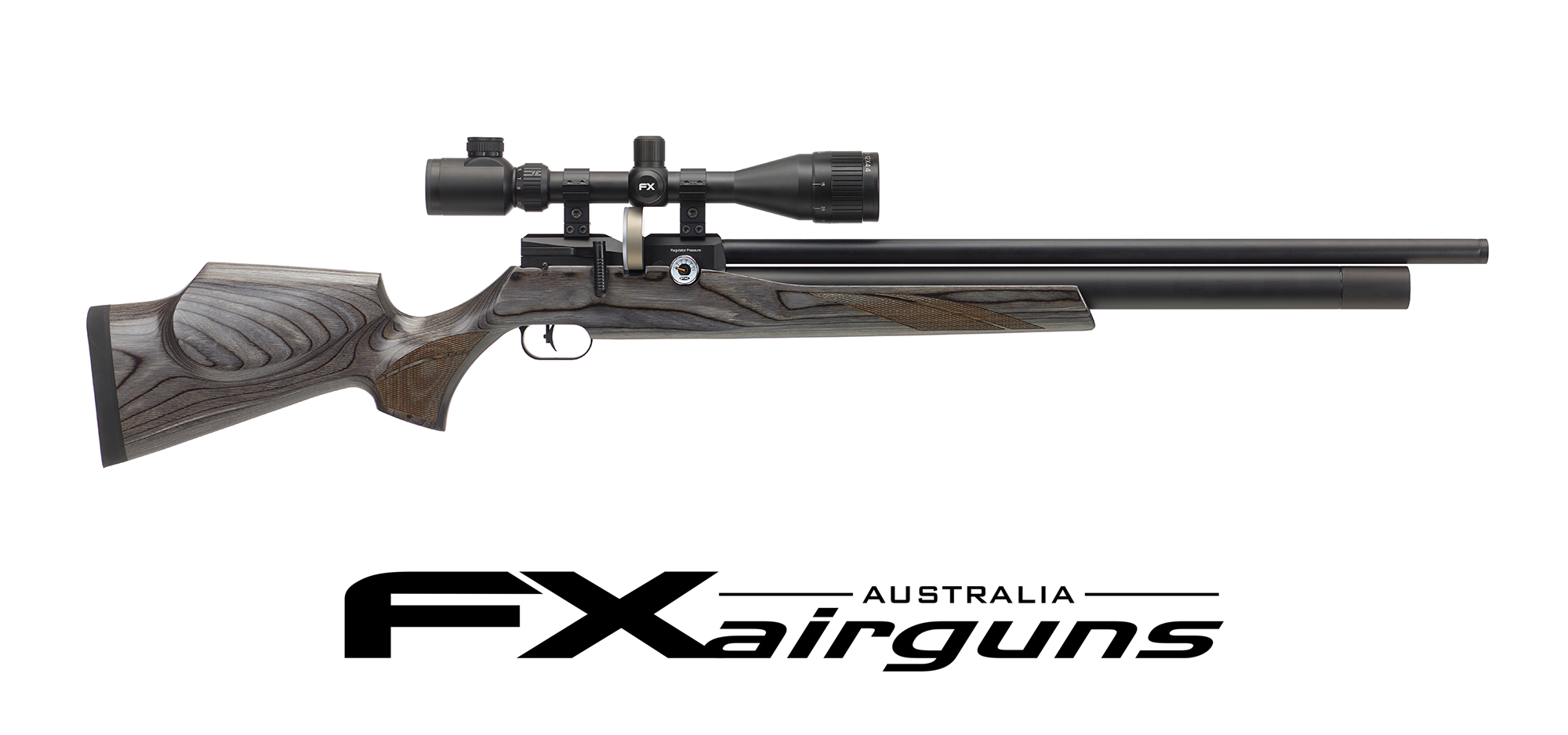

FX Dreamline Classic .30, Standard: 600mm, Laminate Gray
(Note: Scope & rings pictured are sold separately.)
The FX Dreamline Classic is the natural evolution of the FX Streamline. FX has taken the proven Streamline platform and added world class features that take it to the next level; bridging the gap to rifles such as the FX Crown and FX Impact.
Smooth Twist X Barrel
The beauty of the FX Dreamline starts with the revolutionary world class FX Smooth Twist X barrel (STX). This is the same barrel housing and liner system as found on other elite rifles such as the FX Impact, FX Crown and FX Wildcat. The STX barrel allows the Dreamline the unique ability of changing both the caliber of the gun as well as the inner liner of the barrel to allow for different twist rates and other bore specifications. This provides a tailored barrel to meet the vast array of projectiles available today.
Adjustable Match Precision Regulator
The Dreamline also includes the new AMP Regulator (Adjustable Match Precision Regulator). This robust regulator is revolutionary in that it can be adjusted externally either to higher or lower pressures without the need to remove pressure from the gun. The AMP regulator also uses the latest in high performance parts to provide precision accuracy that holds up over time.
Fine Tuning
The FX Dreamline features the same adjustability as found on other premium FX rifles. All adjustments can be fine-tuned including valve flow, hammer tension, and regulator pressure. These adjustments are done quickly and easily allowing the shooter find harmonic balance and maximize the performance and accuracy of the Dreamline.
Rotary Magazine
All FX Dreamline models utilize a large-capacity rotary magazine. This is the same magazine used in the FX Crown and is indexed with the smooth cocking side lever. This newly designed side lever takes the ease of cocking a rifle to a whole new level as it is nearly effortless to cock.
Additional features:
- Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates).
- AMP Externally adjustable pressure regulator.
- Most Dreamline models offer a standard 220 cc cylinder filled up to 230 BAR, but there are also bottle versions of many of the configurations which will allow for more air and higher shot counts.
- ½” UNF threads on the barrel allow for the optional addition of a moderator.
- World-famous FX match grade trigger, set at 15 ounces from the factory.
IMPORTANT: Do not discharge the FX Airguns without air in the system. Ensure you read the owner's manual before use.
SPECIFICATIONS
COCKING SYSTEM | Sidelever |
MAGAZINE TYPE |
Removable high capacity, easy load. |
STOCK |
Synthetic – Ambidextrous |
CALIBER | 4,5 (.177) 5,5 (.22) 6,35 (.25) 7,62 (.30) |
BARREL |
FX Smooth twist X |
FILL PRESSURE |
230 Bar • 3300 Psi |
SAFETY | Manual |
OPTICS |
11 mm dovetail scope mount |
MUZZLE | ½” UNF |
PRESSURE GAUGE |
One for airtube pressure |
TRIGGER |
Adjustable match trigger |
VELOCITY |
4,5 (.177): 295 m/s • 940 ft/s |
ENERGY |
4,5 (.177): 24 J • 18 ft/lbs |
AIR CAPACITY |
4,5 (.177) 220 cc |
LENGTH |
4,5 (.177): 975 mm |
WEIGHT |
Synthetic: 2,6 kg |
CHARGING |
Quick charge system MkI |
