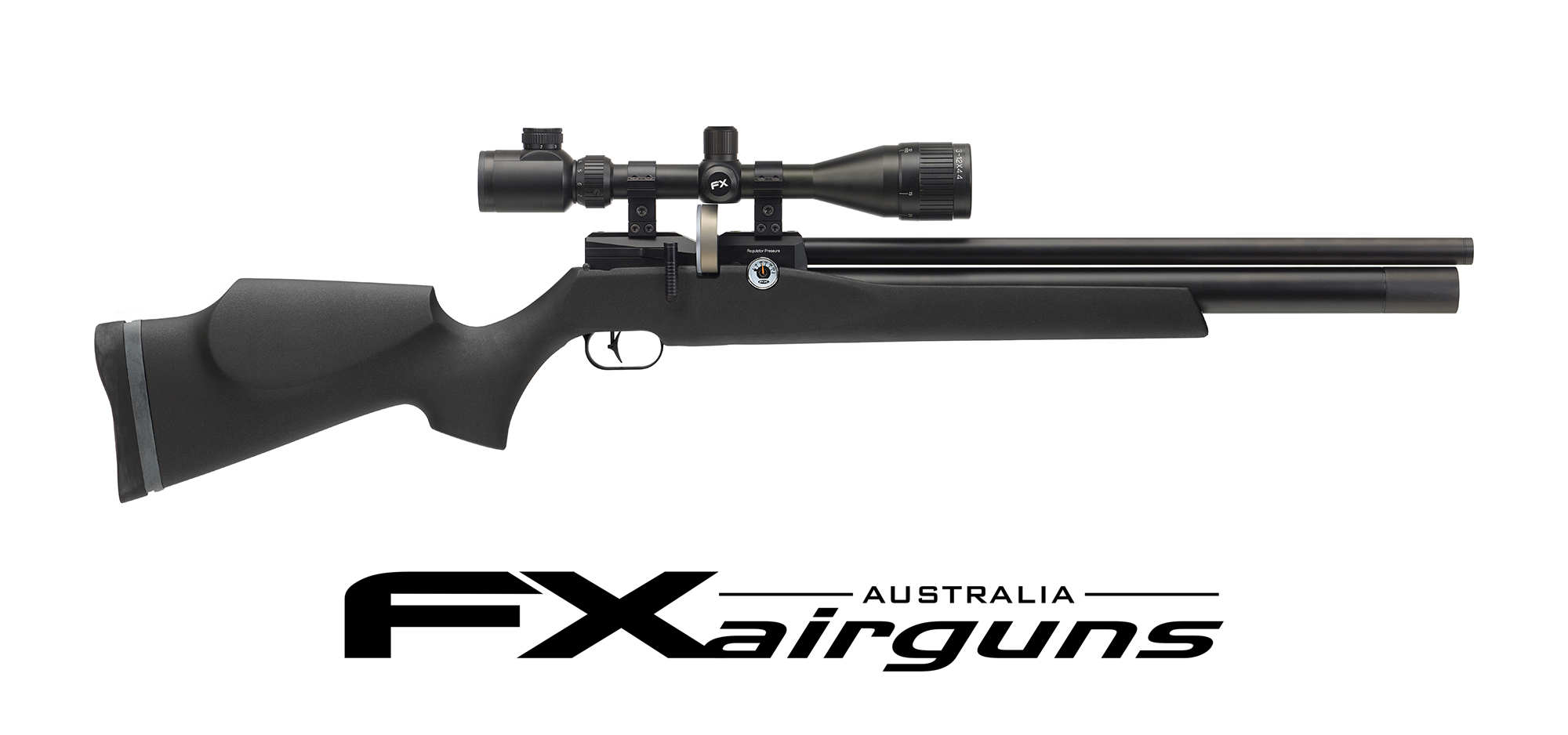

(Note: Scope & rings pictured are sold separately.)

The FX Dreamline Classic is the natural evolution of the FX Streamline. FX has taken the proven Streamline platform and added world class features that take it to the next level; bridging the gap to rifles such as the FX Crown and FX Impact.

Smooth Twist X Barrel

The beauty of the FX Dreamline starts with the revolutionary world class FX Smooth Twist X barrel (STX). This is the same barrel housing and liner system as found on other elite rifles such as the FX Impact, FX Crown and FX Wildcat. The STX barrel allows the Dreamline the unique ability of changing both the caliber of the gun as well as the inner liner of the barrel to allow for different twist rates and other bore specifications. This provides a tailored barrel to meet the vast array of projectiles available today.


Adjustable Match Precision Regulator

The Dreamline also includes the new AMP Regulator (Adjustable Match Precision Regulator). This robust regulator is revolutionary in that it can be adjusted externally either to higher or lower pressures without the need to remove pressure from the gun. The AMP regulator also uses the latest in high performance parts to provide precision accuracy that holds up over time.


Fine Tuning

The FX Dreamline features the same adjustability as found on other premium FX rifles. All adjustments can be fine-tuned including valve flow, hammer tension, and regulator pressure. These adjustments are done quickly and easily allowing the shooter find harmonic balance and maximize the performance and accuracy of the Dreamline.


Rotary Magazine

All FX Dreamline models utilize a large-capacity rotary magazine. This is the same magazine used in the FX Crown and is indexed with the smooth cocking side lever. This newly designed side lever takes the ease of cocking a rifle to a whole new level as it is nearly effortless to cock.



Additional features:

  • Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates).
  • AMP Externally adjustable pressure regulator.
  • Most Dreamline models offer a standard 220 cc cylinder filled up to 230 BAR, but there are also bottle versions of many of the configurations which will allow for more air and higher shot counts.
  • ½” UNF threads on the barrel allow for the optional addition of a moderator.
  • World-famous FX match grade trigger, set at 15 ounces from the factory.

IMPORTANT: Do not discharge the FX Airguns without air in the system. Ensure you read the owner's manual before use.

SPECIFICATIONS

  COCKING SYSTEM       Sidelever
  MAGAZINE TYPE

  Removable high capacity, easy load.
  Made in durable injection-molded POM.
  22 shot when Cal .177
  18 shot when Cal .22
  16 shot when Cal .25
  13 shot when Cal .30

  STOCK

  Synthetic – Ambidextrous
  Walnut – Ambidextrous
  Laminate Black Pepper – Ambidextrous
  Laminate GRS – Green Mountain

  CALIBER   4,5 (.177)
  5,5 (.22)
  6,35 (.25)
  7,62 (.30)
  BARREL

  FX Smooth twist X
  Match grade
  Free floating
  Length 4,5 (.177): 500 mm
  Length 5,5 (.22): 500 mm
  Length 6,35 (.25): 600 mm
  Length 7,62 (.30): 600 mm TBA

  FILL PRESSURE

  230 Bar • 3300 Psi

  SAFETY   Manual
  OPTICS

  11 mm dovetail scope mount

  MUZZLE   ½” UNF
  PRESSURE GAUGE

  One for airtube pressure
  One for regulator pressure

  TRIGGER

  Adjustable match trigger

  VELOCITY

  4,5 (.177): 295 m/s • 940 ft/s
  5,5 (.22): 280 m/s • 920 ft/s
  6,35 (.25): 270 m/s • 890 ft/s
  7,62 (.30) TBA

  ENERGY

  4,5 (.177): 24 J • 18 ft/lbs
  5,5 (.22): 41 J • 30 ft/lbs
  6,35 (.25): 60 J • 45 ft/lbs
  7,62 (.30) TBA

  AIR CAPACITY

  4,5 (.177) 220 cc
  5,5 (.22) 220 cc
  6,35 (.25) 290 cc
  7,62 (.30) 290 cc

  LENGTH

  4,5 (.177): 975 mm
  5,5 (.22): 975 mm
  6,35 (.25): 1090 mm
  7,62 (.30): 1090mm

  WEIGHT

  Synthetic: 2,6 kg
  Walnut: 2,8 kg
  Laminate: 2,9 kg

  CHARGING

  Quick charge system MkI
