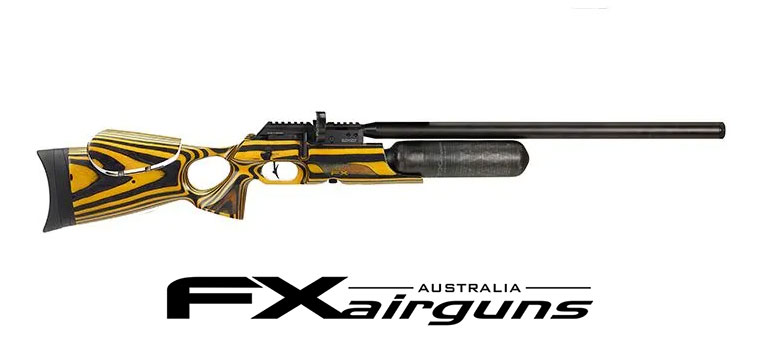

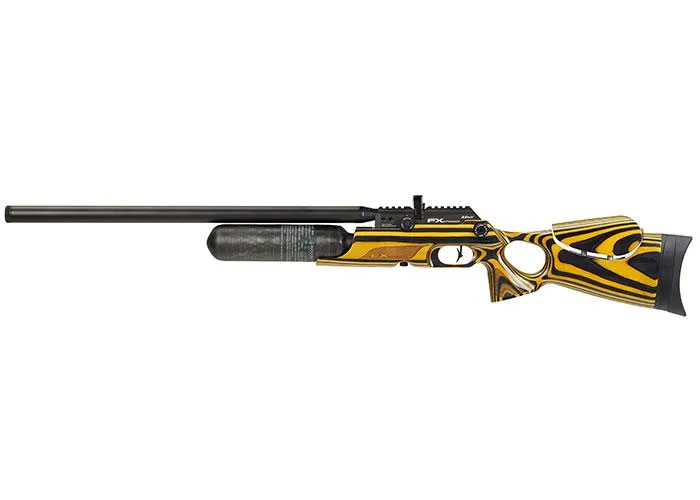

FX Crown MKII .177, Standard+: 600mm, Carbon Fiber Bottle, Laminate Yellow
The increased power available in the MKII comes down to a combination of valving, porting, and plenum space. The plenum of the FX Crown MKII has increased 28% over the previous model! This larger plenum (the chamber of compressed air located before the transfer port) works in tandem with the porting and a new larger valve on the MKII (6.5mm valve). The combination provides spectacular results.
The Crown has evolved
The dramatic evolution of airguns has ramped up demands from shooters worldwide and we have seen an increased desire for more airflow and power in our air rifles. Whereas bullpup configurations can more easily add plenum space and valving for these demands, a traditional rifle like the FX Crown was limited for these demands… until now! The FX Crown MKII brings more power and even more capabilities to an already near-perfect platform.
More Valving, Porting & Plenum Space for More Power
The increased power available in the MKII comes down to a combination of valving, porting, and plenum space. The plenum of the FX Crown MKII has increased 28% over the previous model! This larger plenum (the chamber of compressed air located before the transfer port) works in tandem with the porting and a new larger valve on the MKII (6.5mm valve). The combination provides spectacular results.
Suits Scope Elevation for Longer Distances
Other changes to the Crown include a 20 MOA angle built into the Picatinny scope rail. With air gunners able to shoot at longer distances, this canting of the scope base at the front is what allows for more usable elevation adjustment in the scope at longer distances.
GRS Stock
The FX Crown MKII has some new stock options as well. We have teamed up with famed Norwegian rifle stock maker GRS to provide the first-ever GRS rifle stock for an airgun! GRS builds highly adjustable ergonomic laminate stocks recognized globally as an innovative premium brand. The GRS Crown stock features tool-less adjustments, a broad for-end and an ergonomic GRS grip, offset and angled, offering unsurpassed shooting comfort.
The Best of the Crown Series
The rest of the features of the FX Crown remains unchanged: the hammer power adjuster, air flow power adjuster, externally adjustable AMP regulator, ability to change calibers and twist rates through the Superlight Smooth Twist X (STX) barrel and liner system. With all this as well as the highest capacity magazine in its class, the FX Crown is solidified as the most versatile and robust sporter stock PCP air rifle available.
Additional features:
- Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates).
- Dual External Power.
- Adjusters (hammer spring tension and airflow).
- AMP Externally adjustable pressure regulator.
- Interchangeable Caliber System.
SPECIFICATIONS
| COCKING SYSTEM | Sidelever |
| MAGAZINE TYPE | Removable high capacity, easy load. Made in durable injection-molded POM 22 shot when Cal .177 18 shot when Cal .22 16 shot when Cal .25 13 shot when Cal .30 |
| STOCK |
Laminate available in Forest Green, Yellow Black, Black Pepper |
| CALIBER | 4,5 (.177) 5,5 (.22) 6,35 (.25) 7,62 (.30) |
| BARREL | FX Smooth Twist X Superior Liner (*all except caliber 4,5 which use STX.) Compact: Length 380 mm (available were continuum is not possible) 4,5 (.177) 5,5 (.22) 6,35 (.25) 7,62 (.30) Standard: Length 500 mm 4,5 (.177) 5,5 (.22) 6,35 (.25) 7,62 (.30) Plus: Length 600 mm 5,5 (.22) 6,35 (.25) 7,62 (.30) Sniper: Length 700 mm 5,5 (.22) 6,35 (.25) 7,62 (.30) |
| SHOT CAPACITY | 4,5 (.177): 200 shots approx. 5,5 (.22): 145 shots approx. 6,35 (.25): 110 shots approx. 7,62 (.30): 45 shots approx. |
| FILL PRESSURE | Max 250 bar (3600 psi) *all except VP Edition which Max is 230 Bar (3300 psi) |
| SAFETY | Switch style |
| OPTICS | Picatinny scope mount With 20 MOA angle |
| MUZZLE |
Built-In Shroud (variations may occur depending on country) |
| PRESSURE GAUGE | Dual Manometers One for airtube pressure One for regulator pressure |
| TRIGGER | Adjustable Match Trigger (variations may occur) |
| VELOCITY |
4,5 (.177): 300 m/s • 1000 ft/s |
| ENERGY |
4,5 (.177): up to 38 J • 28 ft/lbs |
| AIR CAPACITY | 480 cc |
| AIR CYLINDER | Removable Carbon fiber wrapped *all except VP version which is aluminium |
| LENGTH | Approximately 450mm + barrel length. |
| WEIGHT | Synthetic: 2,8 kg – 6.2 lbs Walnut: 3 kg – 6.5 lbs Laminate: 3,1 kg – 6.8 lbs GRS Laminate: 4,5 kg – 9.6 lbs |
| CHARGING | Foster Quick Disconnect |
