Swarovski Z8i 1-8x24 L
Z8i Rifle Scope
ULTIMATE PERFORMANCE. PERFECTLY DESIGNED.
The Z8i marks a milestone by SWAROVSKI OPTIK. This rifle scope’s 8x zoom and outstanding optics ensure that you couldn’t be better equipped for every type of hunting. The slim 30-mm (1.2 in) central tube also blends seamlessly with any hunting firearm.

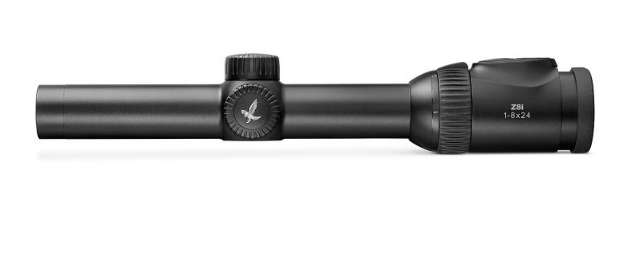

Z8i 1-8x24 L
The illuminated Z8i 1-8x24 L rifle scope provides a remarkable field of view of 42.5 m (127.5 ft) with a 1x magnification, offering the best possible overview of the hunting action to ensure the right decision is made even in rapidly changing situations.
AVAILABLE IN 3 RETICLES
(4Ai) (LD-i) (BRT-i)
ALWAYS ON THE MOVE
The challenge posed by driven hunting requires a powerful experts’ rifle scope like the Z8i 1-8x24. Its exceptional field of view enables you to maintain an overview all the time. The perfect optical system offers excellent viewing comfort and ensures rapid target acquisition.
| Magnification | 1-8x |
| Effective objective lens diameter (mm) | 8.2-24 |
| Exit pupil diameter (mm) | 8.1-3.0 |
| Exit pupil distance (mm) (Eye relief) | 95 |
| Field of view (ft/100 yds / m/100 m) | 127.5-15.9 / 42.5-5.3 |
| Field of view (degrees) | 24.0-3.0 |
| Field of view, apparent (degrees) | 24 |
| Dioptric compensation (dpt) | -3 to +2 |
| Light transmission (%) | 93 |
| Twilight factor acc. to ISO 14132-1 | 2.9-13.9 |
| Impact point corr. per click (in/100 yds / mm/100 m) | 0.36 / 10 |
| Max. elevation / windage adjustment range (in/100 yds / m/100 m) | 72 / 2 |
| Objective filter thread | M 27x0.75 |
| Length (in / mm) | 11.9 / 301 |
| Weight (oz / g) | 18.2 / 515 |
| Central tube diameter (in / mm) | 1.18 / 30 |
| Functional temperature | -4 °F to +131 °F (-20 °C / +55 °C) |
| Storage temperature | -22 °F to +158 °F (-30 °C / +70 °C) |
| Submersion tightness | 13 ft / 4 m water depth (inert gas filling) |
| Brightness levels | Twilight: 0 - 32 / Day: 33 - 64 |
| Operating time (h) | Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180 |
