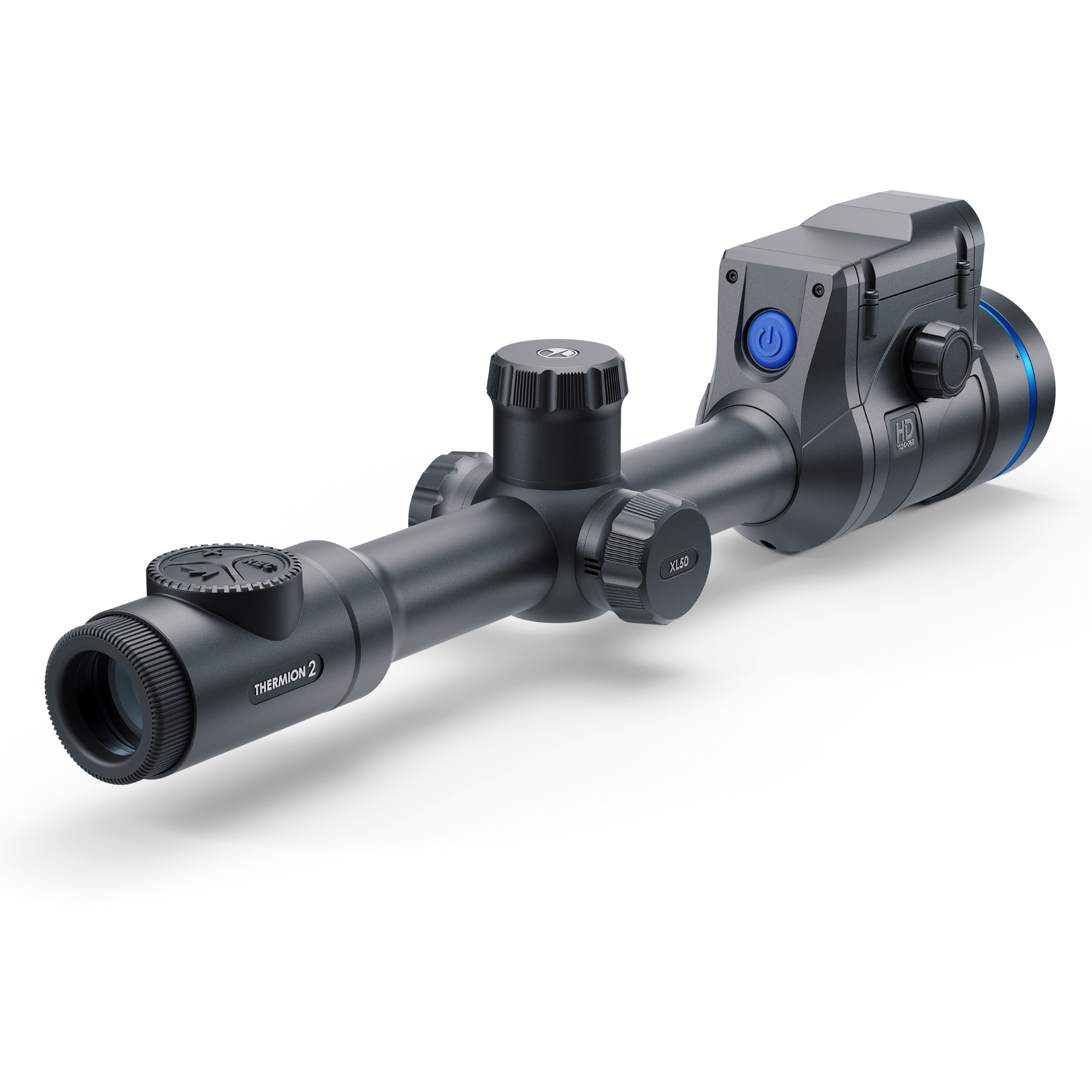

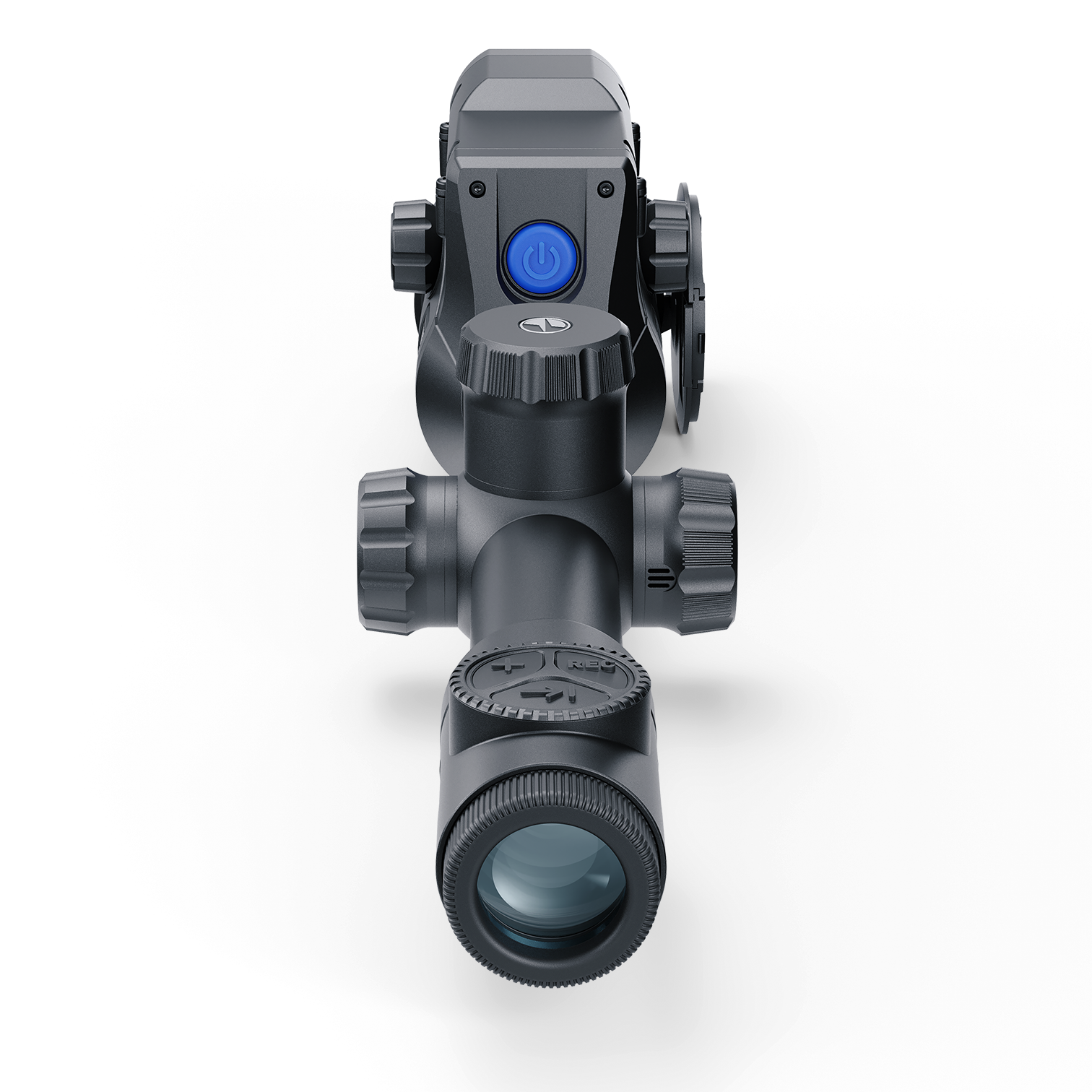

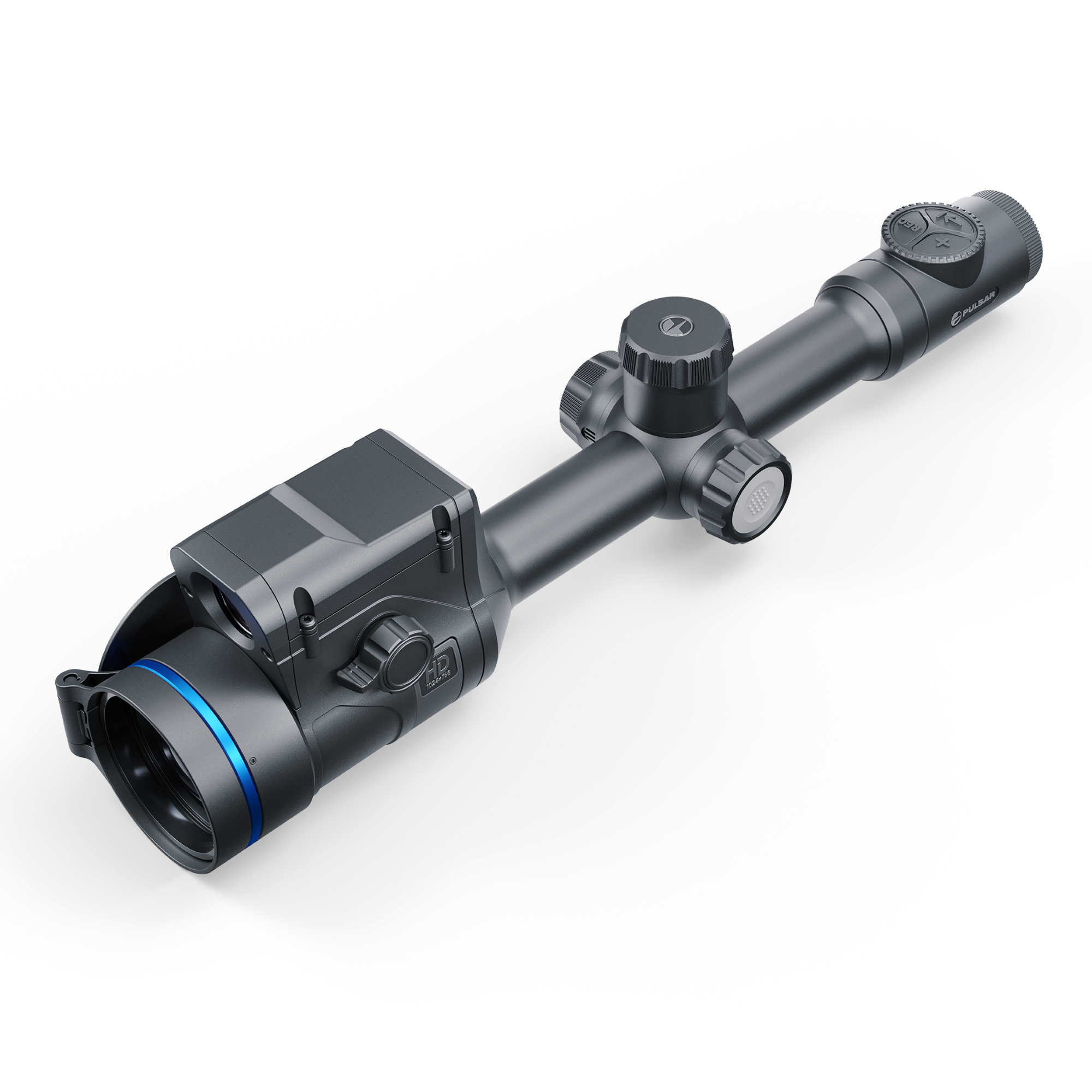

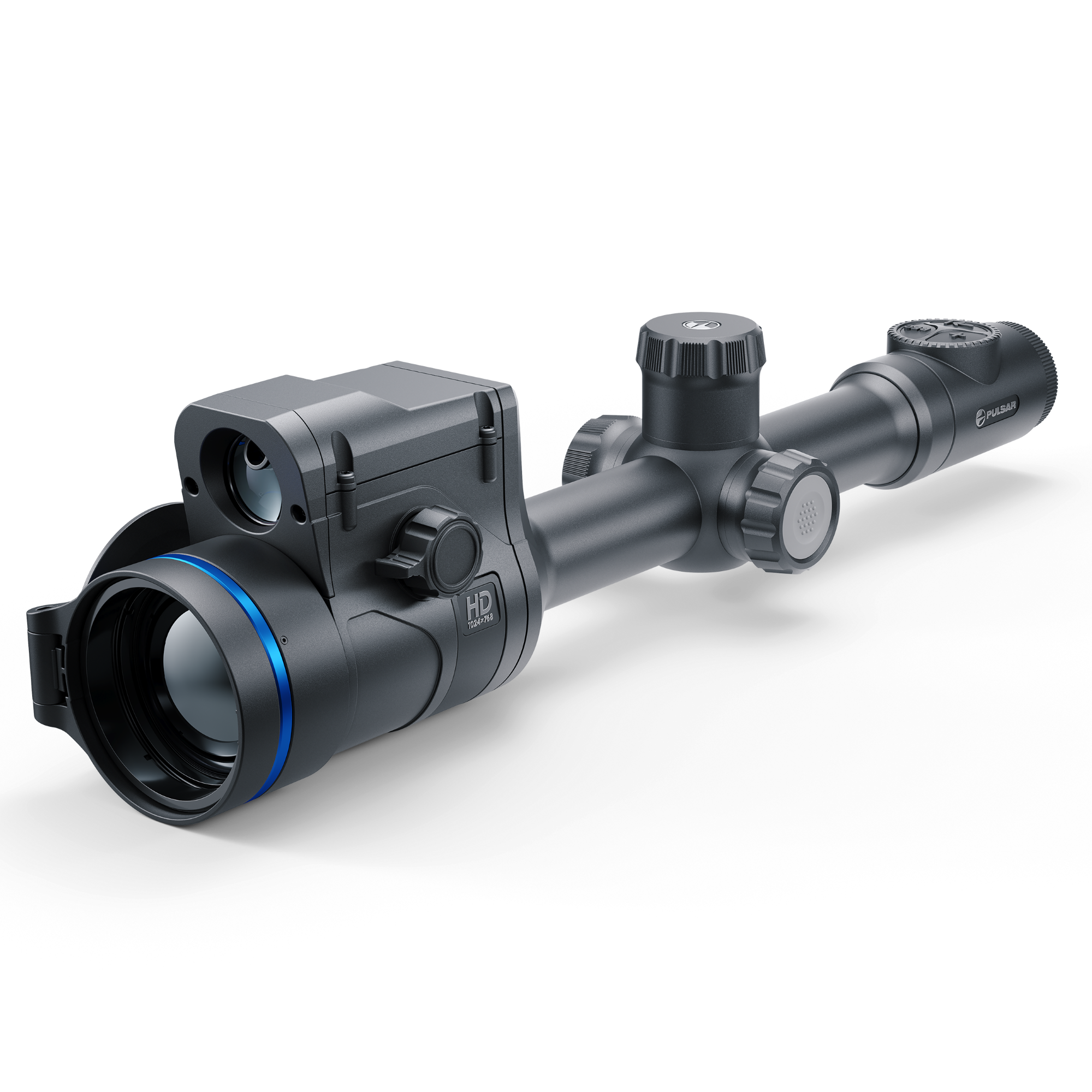

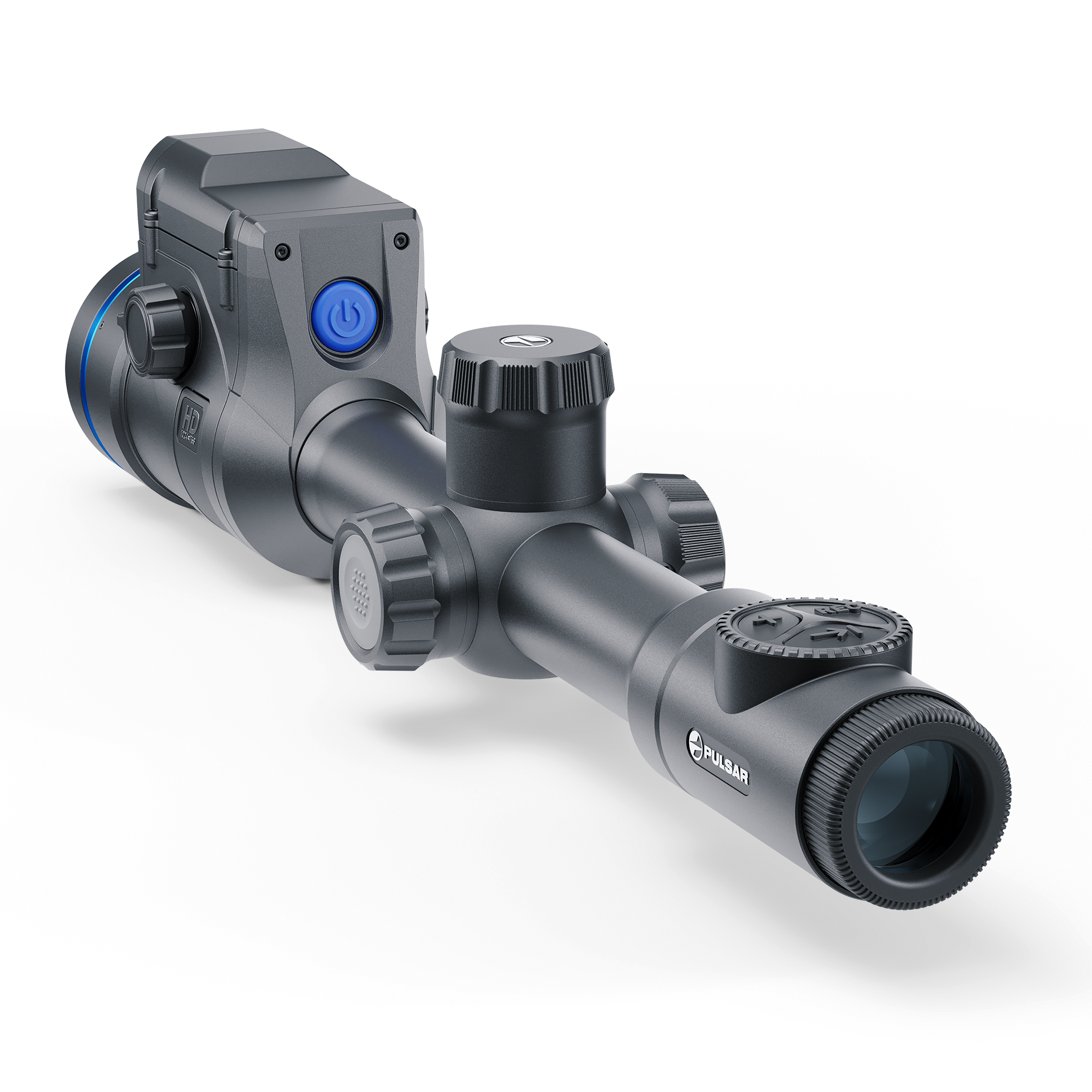

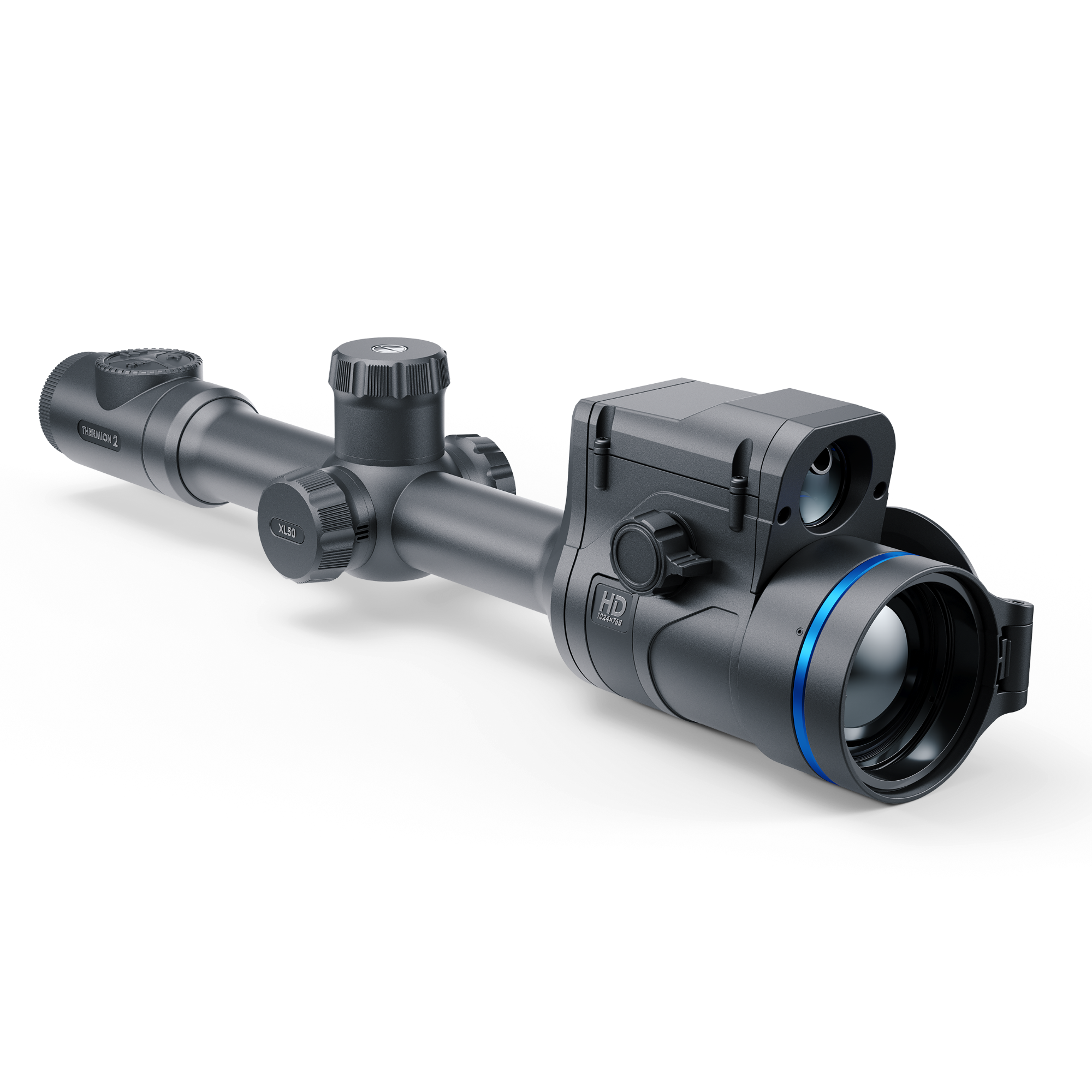

PULSAR THERMION 2 LRF XL50 THERMAL RIFLE SCOPE
Please call to back-order
|
Model |
LRF XL50 |
|
SKU |
76557 |
|
Microbolometer |
|
|
Type |
uncooled |
|
Resolution, pixels |
1024x768 |
|
Pixel Pitch, µm |
12 |
|
NETD, mK |
< 35 |
|
Frame refresh rate, Hz |
50 |
|
Optical Specifications |
|
|
Lens, mm |
F50 F/1.0 |
|
Magnification, x |
1.75 - 14 |
|
Eye relief, mm/inch |
50/1.96 |
|
Field of view (H), °/m@100> |
14/24.6 |
|
Diopter adjustment, D |
-3/+5 |
|
Detection distance (Object of "deer" type), m/y |
2300/2515 |
|
Aiming Reticle |
|
|
Click value, mm@100 m – when magnifying, x |
24 mm – 1.75х 12 mm – 3.5х 6 mm – 7х 3 mm – 14х |
|
Click range (H/V), mm@100 m |
4800/4800 |
|
Display |
|
|
Type |
AMOLED |
|
Resolution, pixels |
1024х768 |
|
Operating Features |
|
|
Diameter of the riflescope body to assemble the mounting rings, mm |
30 |
|
Power Supply, V |
3–4.2 |
|
Battery type / Capacity / Rated Output Voltage |
Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable) or Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable) Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in) |
|
External Power Supply |
5 V, 9 V (USB Type-C Power Delivery) |
|
Battery Packs (built-in APS5 and removable APS2/APS3) operating time at temp. = 22 °C, hrs* |
6/7 |
|
Max. recoil power on rifled weapon, Joules |
6000 |
|
Max. recoil power on smoothbore weapon, caliber |
12 |
|
Degree of protection IP code (IEC60529) |
IPX7 |
|
Operating temperature, °С / °F |
-25 – +50 / -13 – +122 |
|
Dimensions with an eyecup, mm/inch |
426x78.5x94.5 / 16.77x3.09x3.72 |
|
Weight (without removable battery), kg/oz |
1.03 / 36.33 |
|
Video Recorder |
|
|
Photo / video resolution, pixels |
1024x768 |
|
Video / photo format |
.mp4 / .jpg |
|
Built-in memory |
64 GB |
|
Wi-Fi Channel** |
|
|
Frequency |
2.4/5 GHz |
|
Standard |
IEEE 802.11 b/g/n/ac |
|
Laser Rangefinder |
|
|
Wavelength, nm |
905 |
|
Max. Measurement Range, m/y*** |
800 / 874.9 |
|
Measurement Accuracy, m |
1 |
