Kahles RF 10x42

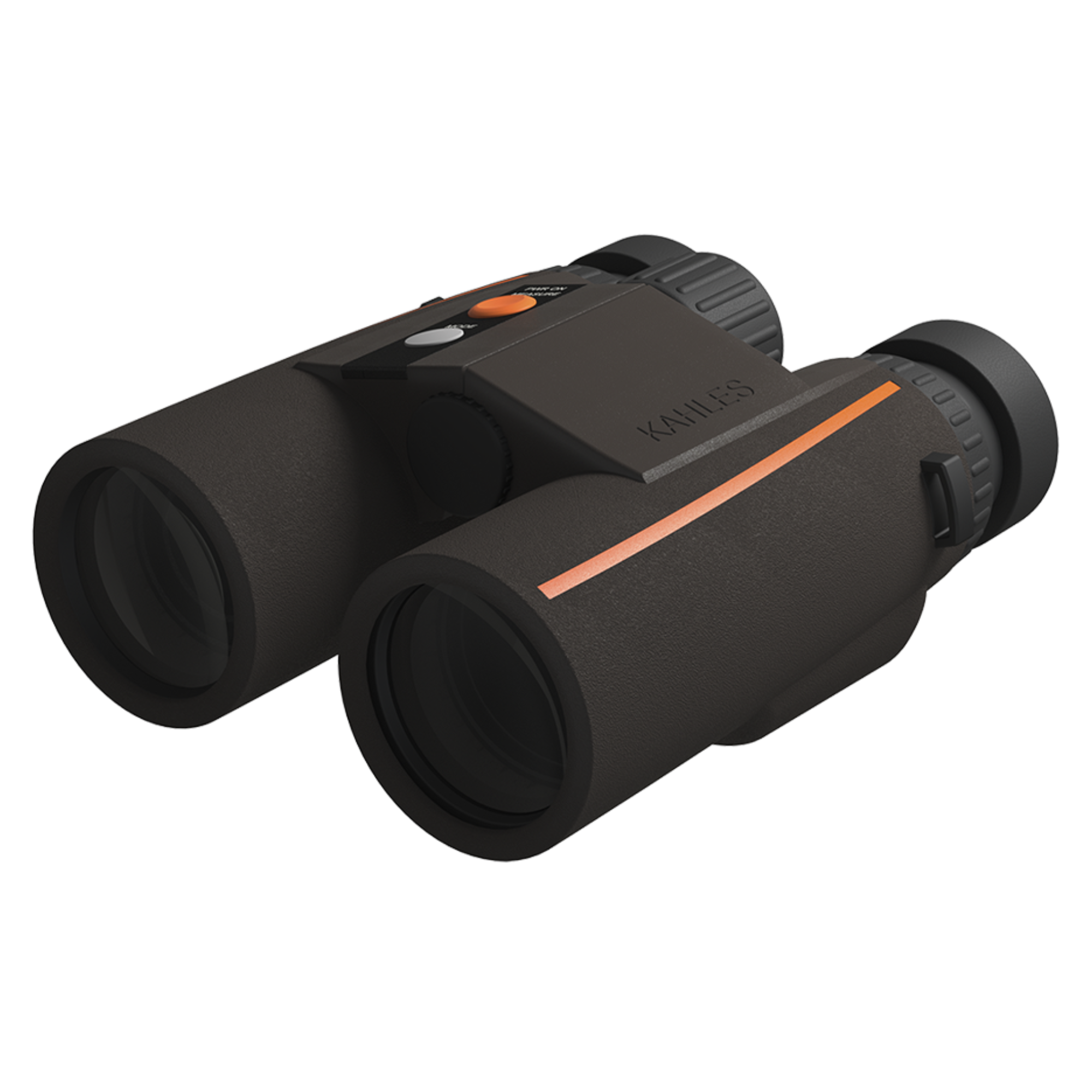

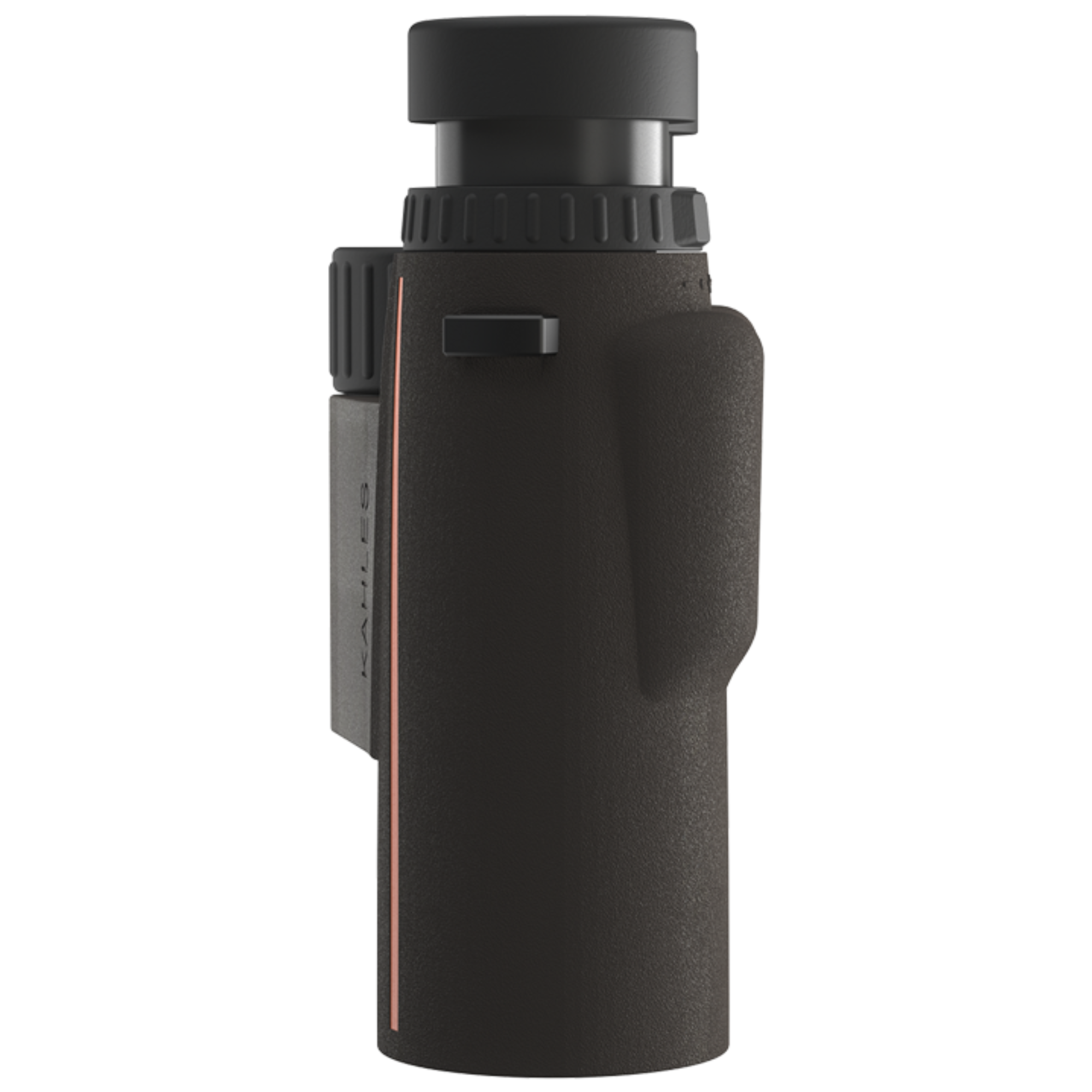

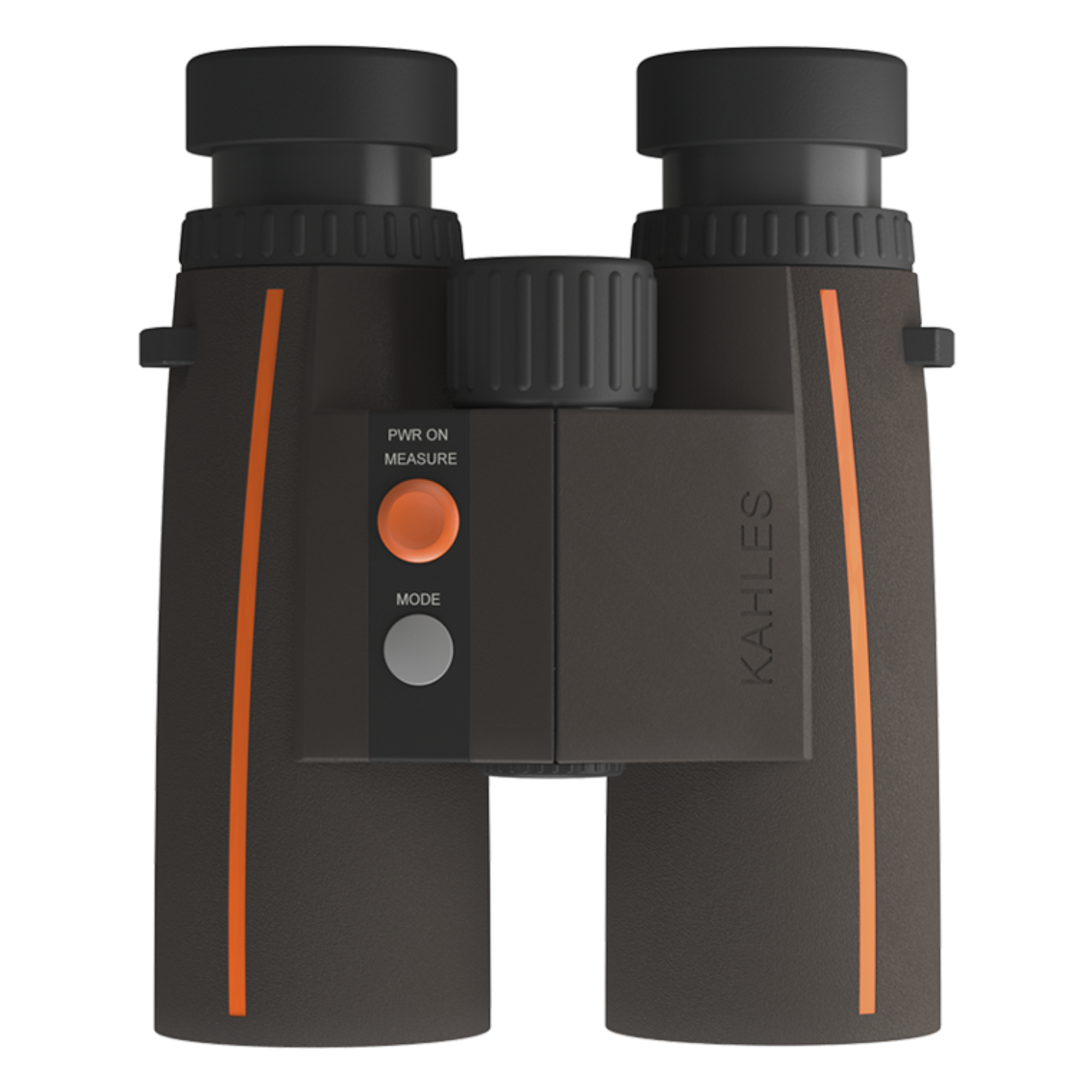

HELIA 42 RF
COMFORTABLY EASY AND RELIABLE
The lightweight and ergonomic HELIA 42 RF perfectly combines brilliant optics with reliable targeting up to 1,200 m on common hunting targets (deer, tree). It stands out for intuitive simple handling and useful hunting features like patented EAC (Enhanced Angle Compensation) and scan mode.
- Easy and reliable targeting up to 1,200 m on common hunting targets
- Intuitive simple menu navigation
- Patented EAC-function (Enhanced Angle Compensation) for angle correction
- Long-range (LR) function for ranging easy to detect targets up to 3,600 m
- Premium-quality OLED display with five manual brightness settings and display in meter or yards
- Scan Mode, temperature and air pressure display
- Extra long battery lifetime ~ 4,000 measurements
|
HELIA 42 RF |
10x42 |
|
Magnification |
10 |
|
Objective lens diameter (mm) |
42 |
|
Eye relief (mm) |
16 |
|
Exit pupil diameter (mm) |
4,2 |
|
Pupil distance (mm) |
58 - 73 |
|
Twilight factor (ISO 14132-1) |
20,5 |
|
Field of view (m/1.000m) |
107 |
|
Field of view (°) |
6,1 |
|
Field of view apparent (°) |
61 |
|
Near focus (m) |
5 |
|
Diopter compensation (dpt) |
± 4 |
|
Measure range - standard (m) |
5 - 1.200 |
|
Measure range - LR (m) easy to measure targets |
up to 3.600 |
|
Range-finding accuracy (m) |
+/- 1 up to 100 |
|
+/- 2 up to 1.000 |
|
|
+/- 0,5% over 1.000 |
|
|
Display type |
OLED |
|
Brightness levels |
5 |
|
Measurement duration |
1 s |
|
Display Auto-off |
5 s |
|
Adjustment position twist-in eye cups |
4 |
|
Waterproof (nitrogen filling) |
√ |
|
Height x Width x Depth approximately (mm) |
145 x 132 x 73 |
|
Weight (g) |
900 |
|
m/yds display |
√ |
|
Laser class |
1 |
|
Single measurement |
√ |
|
Scan measurement |
√ |
|
Angle correction |
EAC-Function |
|
LR measurement |
√ |
|
Temperature measurement |
√ |
|
Air pressure measurement |
√ |
|
Battery type |
CR2 Lithium (3V DC) |
|
Battery lifetime |
~ 4.000 range cycles |
|
Guarantee |
10 years |
|
Guarantee electronics |
2 years |
|
Operating temperature mechanical (°C) |
-10 / +55 |
|
Operating temperature electronical (°C) |
-10 / +55 |
|
Accessories (inclusive) |
Ocular and objective cover, |
