Description

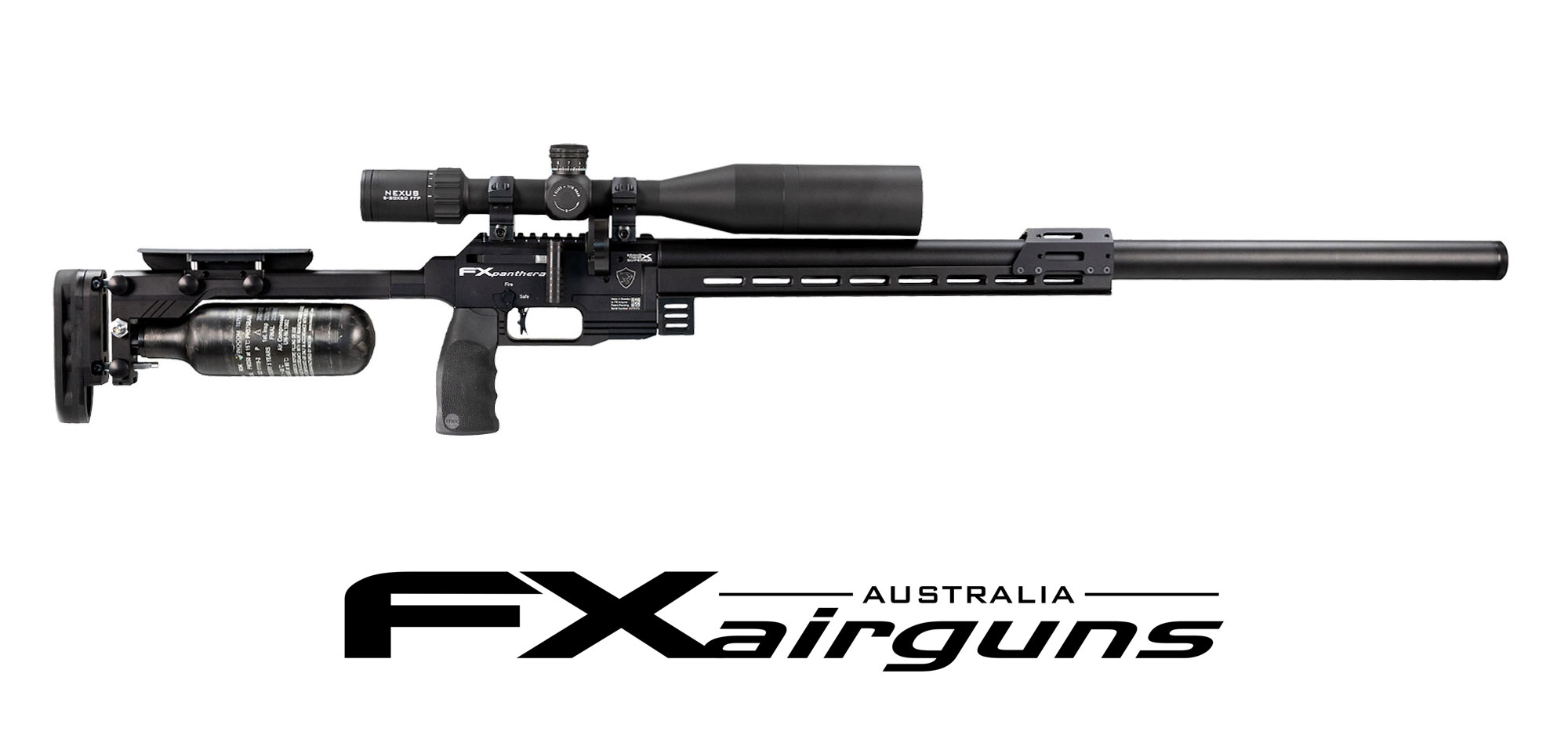

The FX Panthera is unlike any previous FX Airguns rifle. It is a dedicated slug rifle, purpose-built with precision competition in mind, accelerating the FX Airguns legacy and pushing the boundaries of airgun performance. The Panthera includes technology displaying a generational leap-forward for an airgun.

New dynamic block

It begins with the new Dynamic Block, a new breech block designed from the ground up for performance slug shooting. The Dynamic Block utilizes a compact one-piece valve. This High-Power / Short-Impulse Valve is extremely efficient while allowing an immense and precise flow of air.


Market-leading plenum design

The plenum design (i.e. Dynamic Plenum) feeding the Panthera is revolutionary and the first of its kind. It is an over-the-barrel plenum which provides a consistent regulated pressurized plenum around the barrel, adding increased rigidity to the barrel as well as allowing multiple plenum lengths to be employed to match the caliber and power of the rifle. Precise levels of pressure are maintained by the single AMP MKII Regulator. Three sizes of plenum will be utilized initially: a Micro Plenum (sub 12ft/lb rifles), Macro Plenum (62cc) & Magnum XL Plenum (156cc). The results of the Dynamic Breech & Plenum are extraordinary!

Testing has yielded constant 10-shot strings with standard deviations in the low 1.0–2.0 range and extreme spreads as low as 3-4. This ability to precisely control airflow paired with the world-class FX Superior STX barrel using premium slugs will yield competition wins, and not just in airgun competitions. .22LR precision shooters will identify the ability to shoot the same BC slugs and weights they are used to, but with the control and standard deviations that only FX Airguns can deliver.


Stock designed for competition

It features a 14.75” long Arca rail complete with M-LOK sections and a barricade block nestled next to the breech (you can achieve an ideal balance point by adding external M-LOK compatible weights or internal FX Barrel Weights that attach under the shroud). The Panthera further fits the shooter using a fully adjustable buttstock and an adjustable cheekpiece that is also ambidextrous.


Winning Features

Air source is a 300cc carbon fiber bottle attached in the rear and is filled via a rear located foster quick disconnect. The Dynamic Block has a larger breech than previous rifles that allows projectiles up to 13mm in length. It uses the Standard Side-Shot Magazine but with a newly designed deeper lid to accommodate longer-length slugs. The FX Panthera employs the Quick Tune System (the same as found on the FX Impact M3), uses a 20MOA Picatinny scope rail, comes standard with a zero-angle AR grip, and has an ambidextrous sidelever cocking handle that is reversible to the left side of the rifle. Dual-angled Manometers on the left side of the block show the bottle pressure and the regulated plenum pressure.


Configurations

The FX Panthera comes in three configurations, the Panthera 700, Panthera 600 & Panthera 500 (corresponding to barrel length). The Panthera 600 & 700 utilise the FX Superior Heavy STX barrel liner as standard as they have been purpose-built for slug shooting. The Panthera 500 uses the standard FX Superior STX barrel liner that shoots both pellets and lightweight slugs. The rifle allows for the quick change of barrel liners but changing calibers and affixing different barrel lengths to the Panthera can only be done by an authorized FX dealer.

Additional accessories will be offered to further customize the rifle including a bag rider, barrel weights, offset M-LOK weights, smaller profile competition Mini-Mag, Picatinny accessory sections, and an optional tungsten hammer. The new FX Panthera will forever change the precision rifle world. It feels and shoots like a precision 22LR, enjoying straight-back recoil, but with laser-sharp precision and accuracy only found with an FX Airgun!


Additional features:

  • AMP MkII Regulator
  • Externally Adjustable
  • Quick Tune System
  • Micro and macro adjustment of hammer spring tension


SPECIFICATIONS

  COCKING SYSTEM

  Right hand positioned sidelever with an ambidextrous mount to be able to relocate sidelever on left side for lefthanded shooters.

  MAGAZINE TYPE

  Removable high capacity, easy load.
  Newly developed deeper lid to accommodate longer length slugs.
  Maximum ammunition length, 13 mm (0,51”)
  Made in durable injection-moulded POM
  21 shot when Cal .177
  18 shot when Cal .22
  16 shot when Cal .25
  13 shot when Cal .30

 STOCK

  Ambidextrous
  Rear
  Recoilpad adjustable in height, angle, and length of pull.
  Cheek Piece adjustable in height (ambidextrous mount)
  Mount for bag rider.
  Grip
  Zero-angle grip
  AR15 mount specifications
  Fore End
  Arca-Swiss rail. Length 14,75”
  M-Lok system® , left and right side
  M-Lok style on the bottom side of the stock
  Top Accessory Mount with possibilities to mount picatinny rail in five different positions with M-Lok style in each mount position.
  Barricade Stop in the end of the Fore End Stock and in the start of the Fore End providing the shooter with
  solid grip when shooting from a barricade or other unconventional shooting positions.

  CALIBRE   4,5 (.177)
  5,5 (.22)
  6,35 (.25)
  7,62 (.30)
  BARREL

  500:
  FX Superior STX barrel liner.
  Length 500 mm
  600:
  Superior Heavy STX barrel liner and carbon fibre liner sleeve.
  Length 600 mm
  700:
  Superior Heavy STX barrel liner and carbon fibre liner sleeve.
  Length 700 mm

  SHOT CAPACITY

  500:
  4,5 (.177) N/A
  5,5 (.22) 112 shots with 15.89 gr pellet at 870 fps
  6,35 (.25) 56 shots with 25.39 gr pellet at 880 fps
  7,62 (.30) 37 shots with 44.75 gr pellet at 860 fps
  600:
  4,5 (.177) N/A
  5,5 (.22) 80 shots with 22 gr hybrid slug at 900 fps
  6,35 (.25) 60 shots with 26 gr hybrid slug at 900 fps
  7,62 (.30) 35 shots with 44.5 gr hybrid slug at 900 fps
  700:
  4,5 (.177) N/A
  5,5 (.22) 90 shots with 22 gr hybrid slug at 900 fps
  6,35 (.25) 70 shots with 26 gr hybrid slug at 900 fps
  7,62 (.30) 40 shots with 44.5 gr hybrid slug at 900 fps

  FILL PRESSURE

  Max 250 bar (3625 psi)

  SAFETY   Switch style
  OPTICS

  Picatinny rail with built in 6 MIL/20 MOA angle
  Marked with figures on the right side for easy repositioning of optics.

  MUZZLE

  Built-In Shroud system (variations may occur depending on country).

  PRESSURE GAUGE.

  Dual Angled Gauges:
  Air tube pressure WIKA
  Regulator pressure WIKA

  TRIGGER

  Adjustable Match Trigger
  Trigger blade can be adjusted in reach, height and rotated to set the blade in an angle.

  VELOCITY   N/A
  ENERGY

  500:
  4,5 (.177) N/A
  5,5 (.22) up to 95 J – 70 ft/lbs with 34gr slug at 960 fps
  6,35 (.25) up to 108 J – 80 ft/lbs with 43.5gr slug at 910 fps
  7,62 (.30): up to 150 J – 110 ft/lbs with 64gr slug at 880 fps
  600:
  4,5 (.177) N/A
  5,5 (.22) up to 111 J – 82 ft/lbs with 34 gr pellet at 1040 fps
  6,35 (.25) up to 123 J – 91 ft/lbs with 43.5 gr slug at 970 fps
  7,62 (.30) up to 176 J – 130 ft/lbs with 64 gr slug at 1020 fps
  700:
  4,5 (.177) N/A
  5,5 (.22) up to 130 J – 96 ft/lbs with 40 gr slug at 1040 fps
  6,35 (.25) up to 145 J – 107 ft/lbs with 55.5 gr slug at 930 fps
  7,62 (.30) up to 203 J – 150 ft/lbs with 70 gr slug at 982 fps
  Note: above figures are maximum FAC Power output using tungsten hammer.

  AIR CAPACITY

  300 cc air cylinder + eventual plenum volume

  AIR CYLINDER

  Carbon fibre wrapped air tank, removable

  LENGTH

  500: 965 mm – 38″
  600: 1118 mm – 44″
  700: 1245 mm – 49″

  WEIGHT

  500: 3,5 kg – 7,65 lbs
  600: 3,7 kg – 8,10 lbs
  700: 3,9 kg – 8,55 lbs

  CHARGING

  Rear Foster Quick Disconnect, dust cap included.

  MORE FEATURES

  AMP MkII Regulator
  Externally Adjustable
  Quick Tune System
  Micro and macro adjustment of hammer spring tension

  PLENUM

  Micro Plenum – Sub 12ft/lb rifles
  Macro Plenum – 62 cc
  Magnum XL Plenum – 156 cc
  500: Macro (micro for sub 12ft/lb)
  600: Magnum XL
  700: Magnum XL
