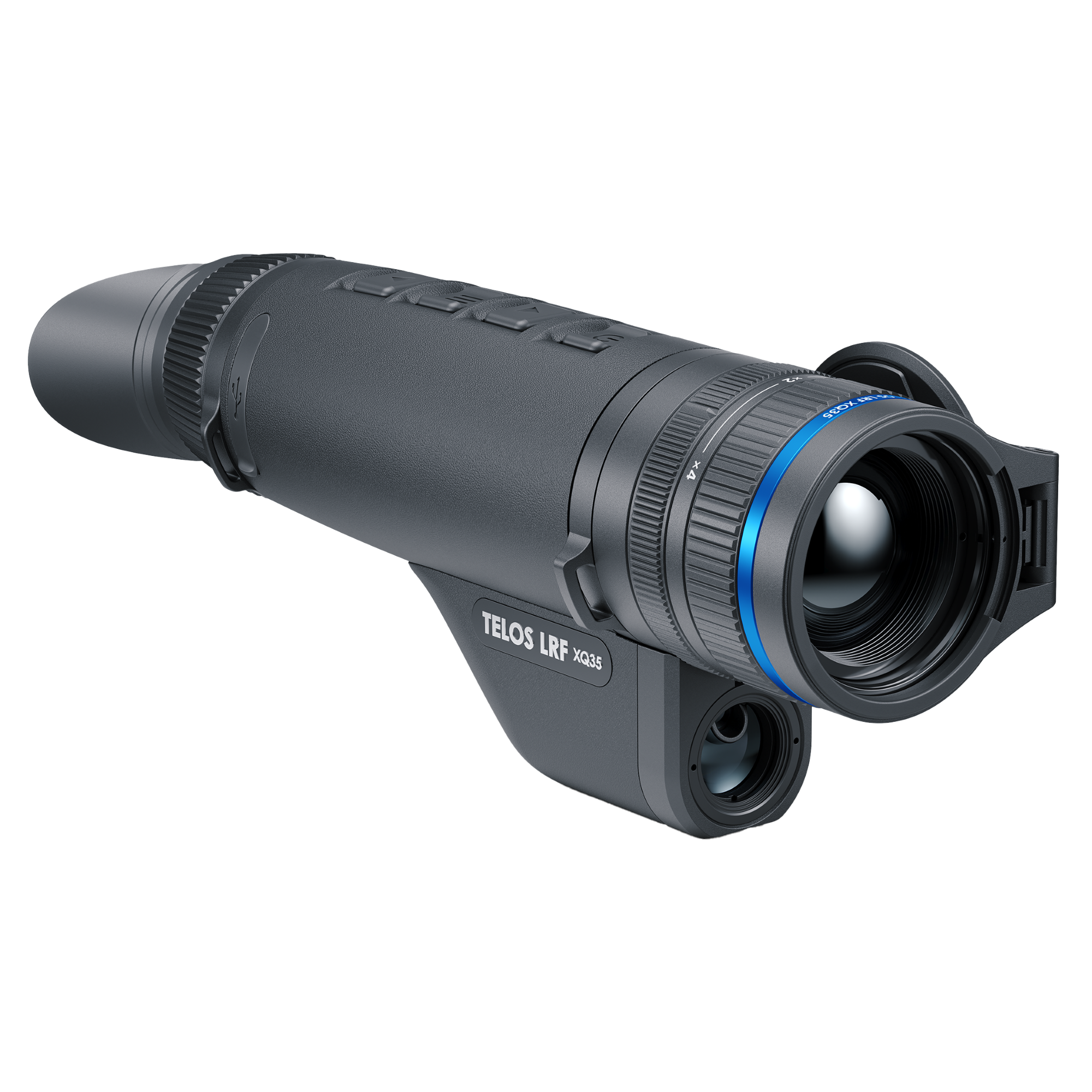

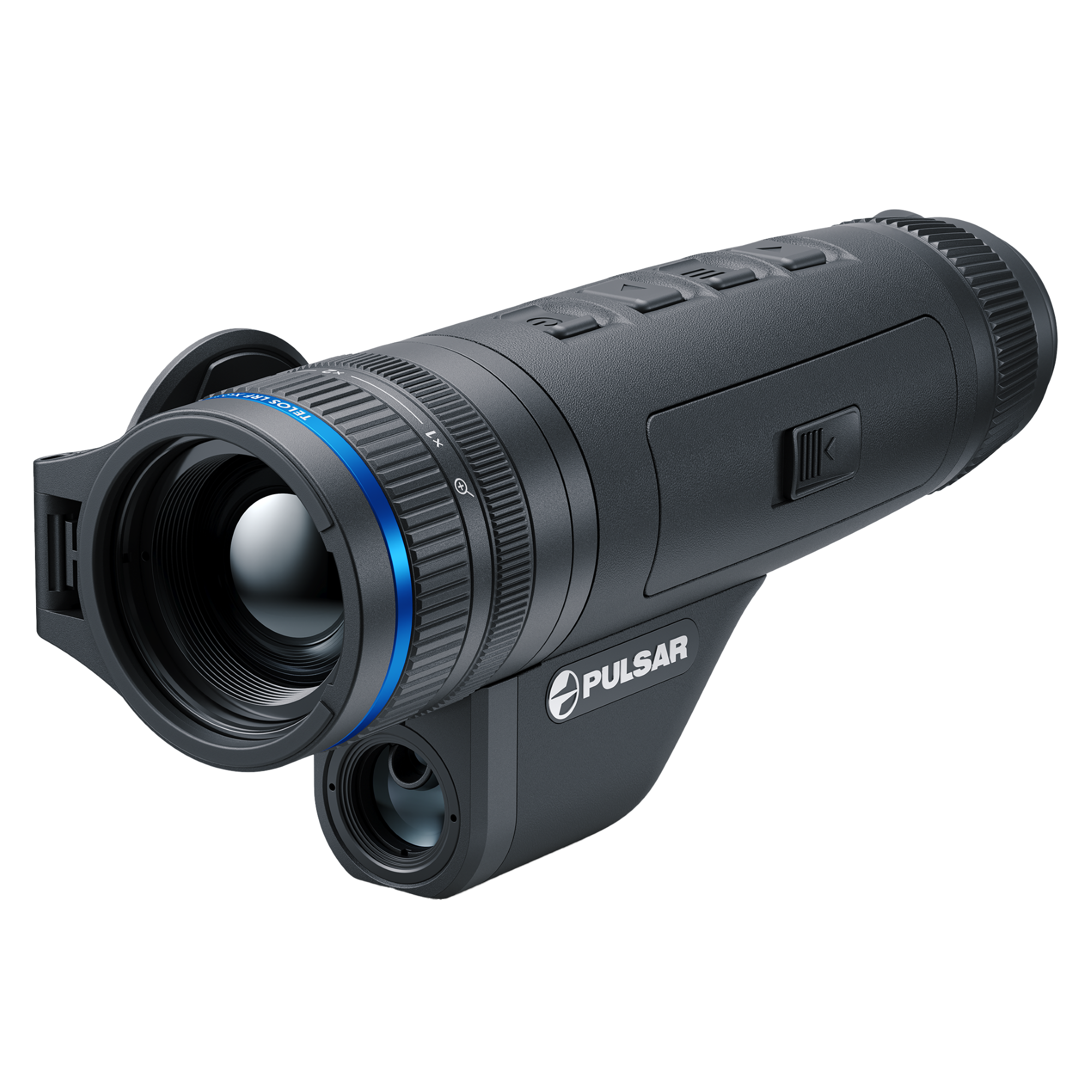

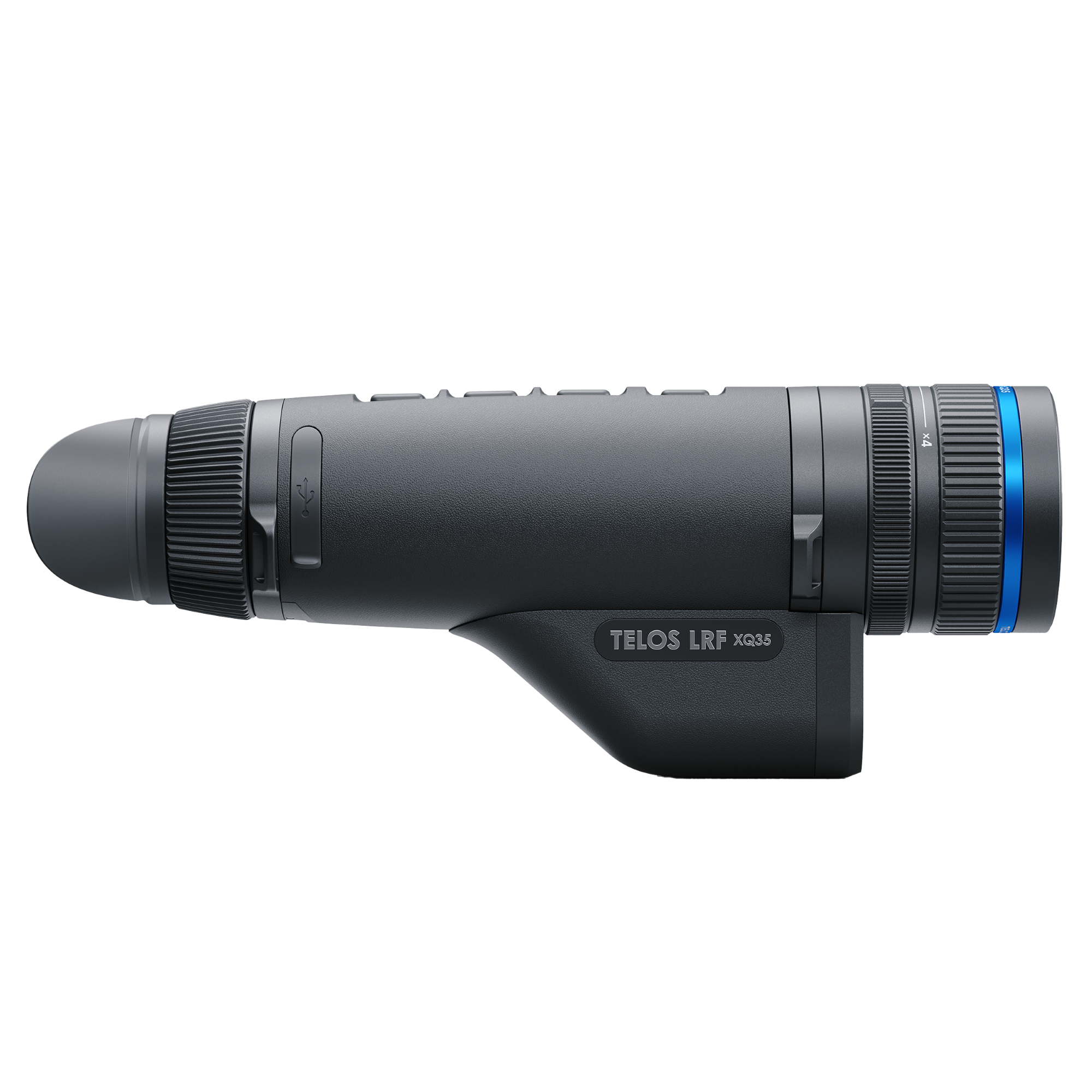

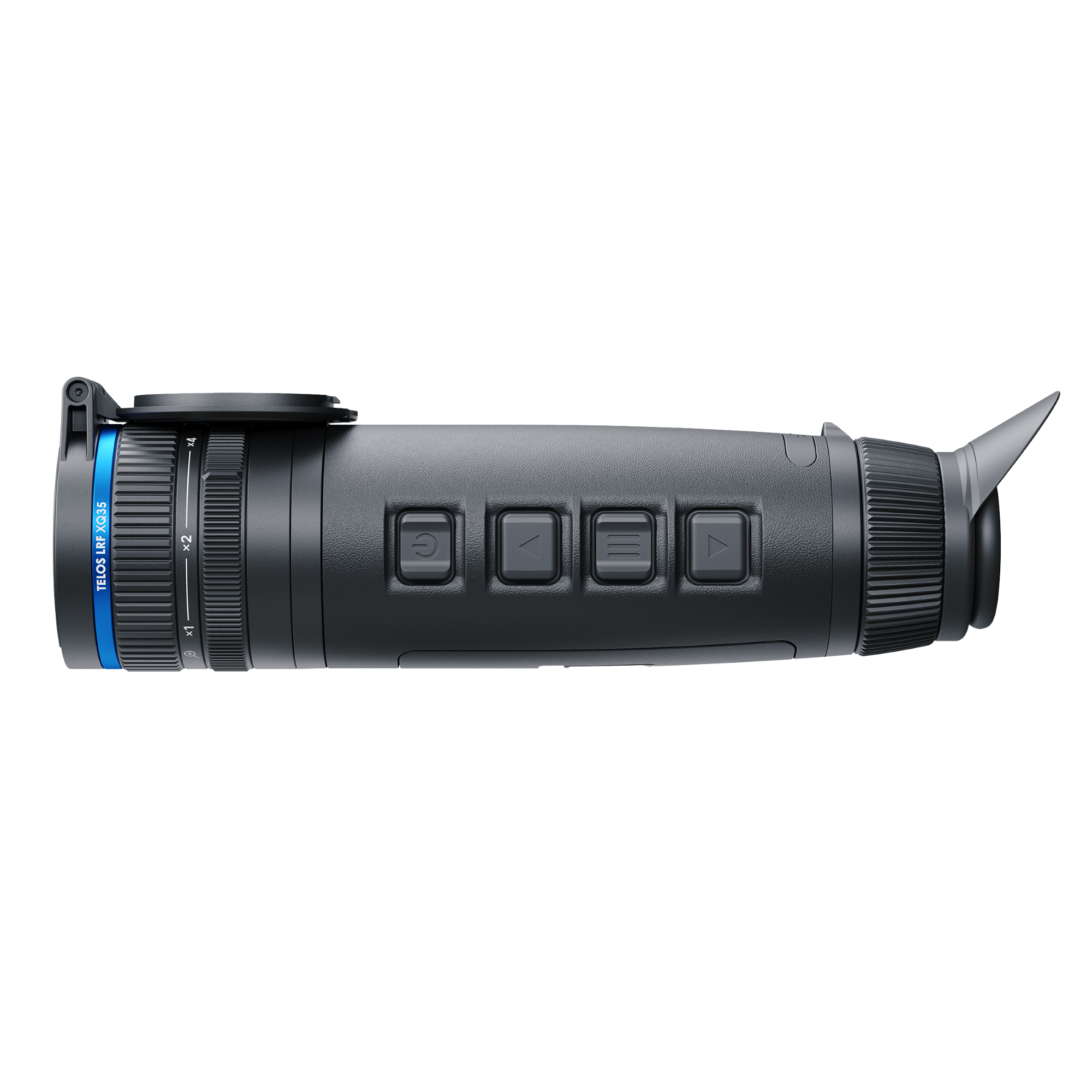

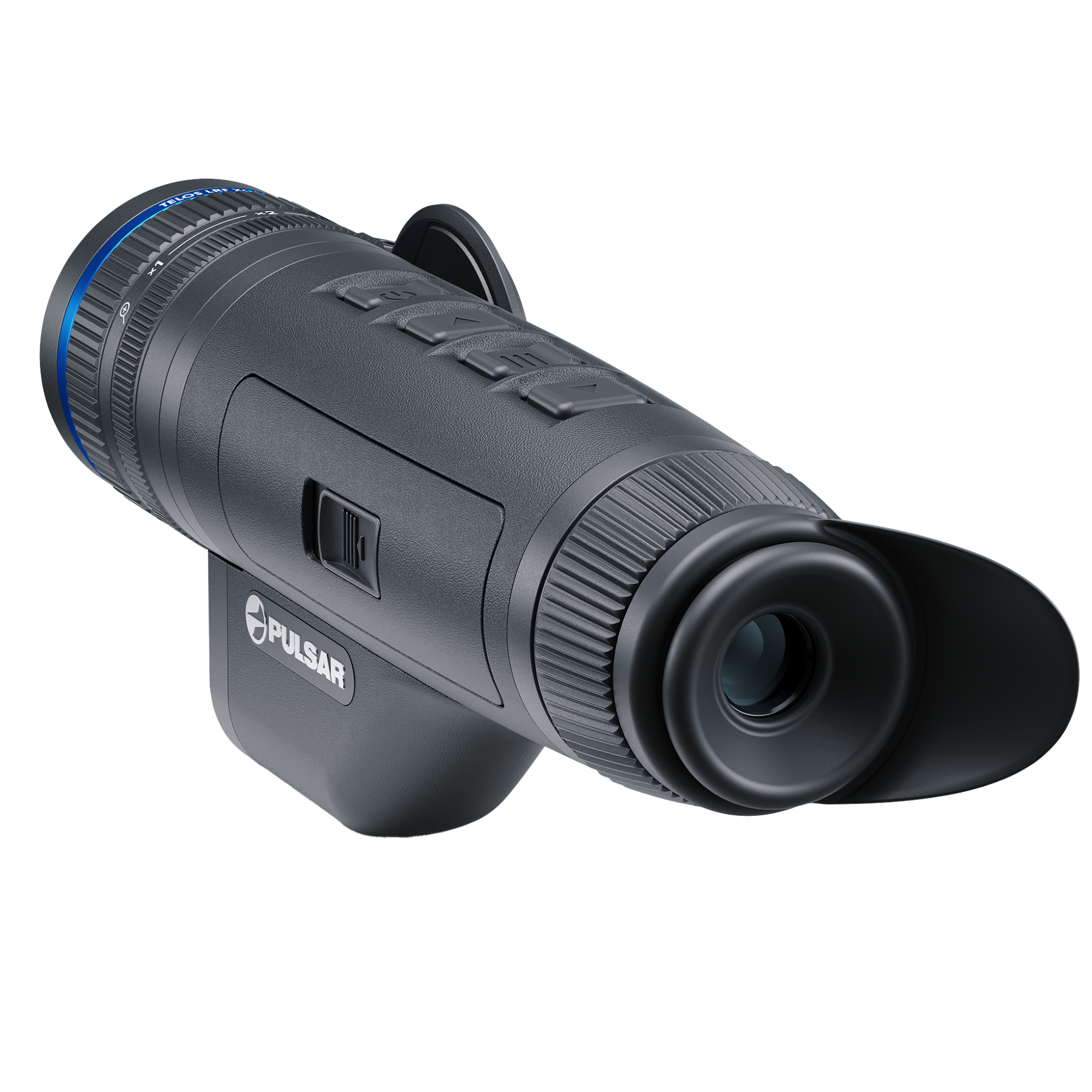

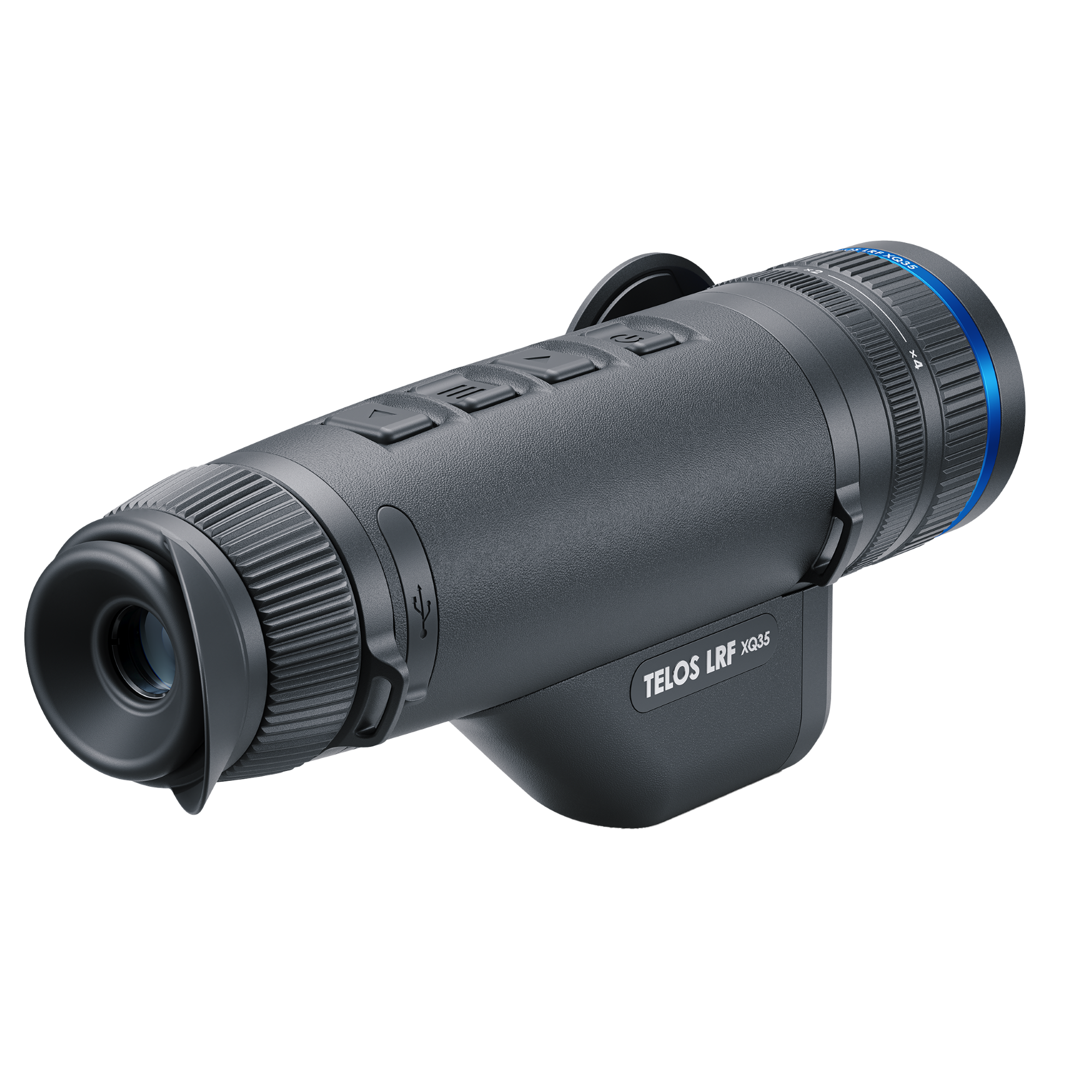

PULSAR TELOS LRF XQ35 THERMAL MONOCULAR
Please call to back-order
|
Model |
LRF XQ35 |
|
SKU |
77512 |
|
Microbolometer |
|
|
Type |
uncooled |
|
Resolution, Pixels |
384x288 |
|
Pixel Pitch, µm |
17 |
| NETD, mK |
< 25 |
|
Frame Rate, Hz |
50 |
|
Optical Characteristics |
|
|
Optical Magnification, x |
3 |
|
Smooth Digital Zoom |
3 - 12 |
|
Digital Zoom, x |
x1 - x4 |
|
Lens Focus, mm |
35 |
|
Relative Aperture, D/f' |
1.0 |
|
Minimum Focus Distance, m/y |
5 / 5.5 |
|
Exit Pupil Diameter, mm/inch |
4 / 0.16 |
|
Angular Field of View (Horizontal x Vertical), degree |
10.7x8.0 |
|
Linear Field of View, m at 100 m |
18.7 |
|
Eyepiece Focus Range, Dioptre |
+4 / -5 |
|
Detection Distance for Deer-Sized Objects, m/y |
1300 / 1422 |
|
Display |
|
|
Type |
AMOLED |
|
Resolution, Pixels |
1024x768 |
|
Operational Characteristics |
|
|
Power Supply, V |
3 - 4.2 |
|
Battery Type/Capacity/Nominal Output Voltage |
LPS7i Li-ion Battery Pack / 6400 mAh / DC 3.7 V |
|
External Power Supply |
5 V, 9 V (USB Type-C) |
|
Battery Run Time at t=22°C, hours* |
8.5 |
|
Degree of Protection, IP Code (IEC60529) |
IPX7 |
|
Operating Temperature Range, °C / °F |
-25 … +40 / -13 – +104 |
|
Dimensions, mm/inch |
224x66x87 / 8.82x2.6x3.4 |
|
Weight (with battery), kg/oz |
0.63 / 35.3 |
|
Video Recorder |
|
|
Photo/Video Resolution, Pixels |
1024x768 |
|
Video/Photo Format |
.mp4 / .jpg |
|
Built-in Memory |
64 GB |
|
Wi-Fi Channel** |
|
|
Frequency |
2.4/5 GHz |
|
Standard |
IEEE 802.11 b/g/n/ac |
|
Characteristics of the Rangefinder |
|
|
Wavelength, nm |
905 |
|
Measurement Range, m/y*** |
1000/1094 |
|
Measurement Accuracy, m |
1 |
